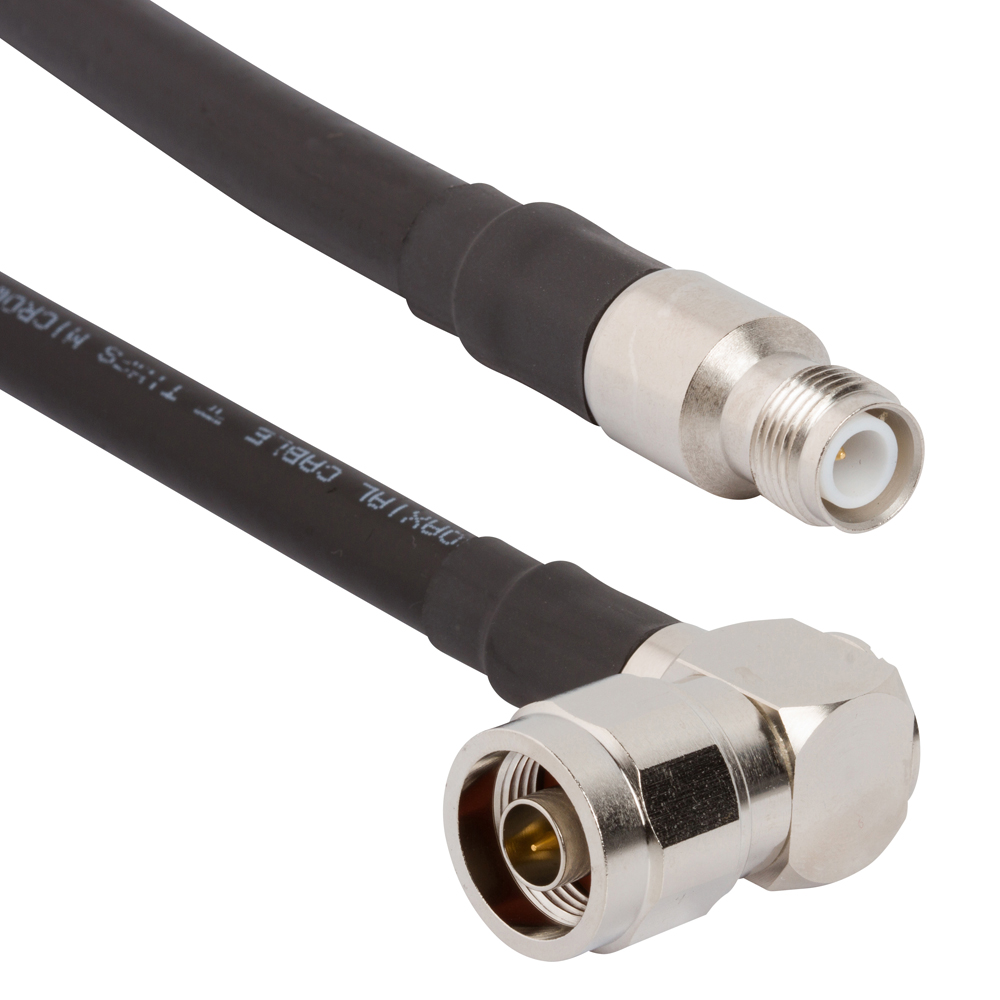

RF Cable Assembly N-Type Right Angle Plug to RP-TNC Straight Jack LMR-400 50 Ohm 4 Meter (157.48 Inches)
N-Type to RP-TNC Cable Assemblies, RP-TNC to N-Type Cable Assemblies
095-909-190M400
$81.06
N-Type Right Angle Plug to RP-TNC Straight Jack LMR-400 50 Ohm 4 Meter (157.48 Inches)
| Weight | 0.48752 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Connector 1 Series | N-Type |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | 082-6520 |
| Connector 2 Series | RP-TNC |
| Connector 2 Style | Str Jack |
| Connector 2 Part Number | 122392RP |
| Cable Type | Times LMR-400 |
| Cable Assembly Length | 157.48 in (4000 mm) |
