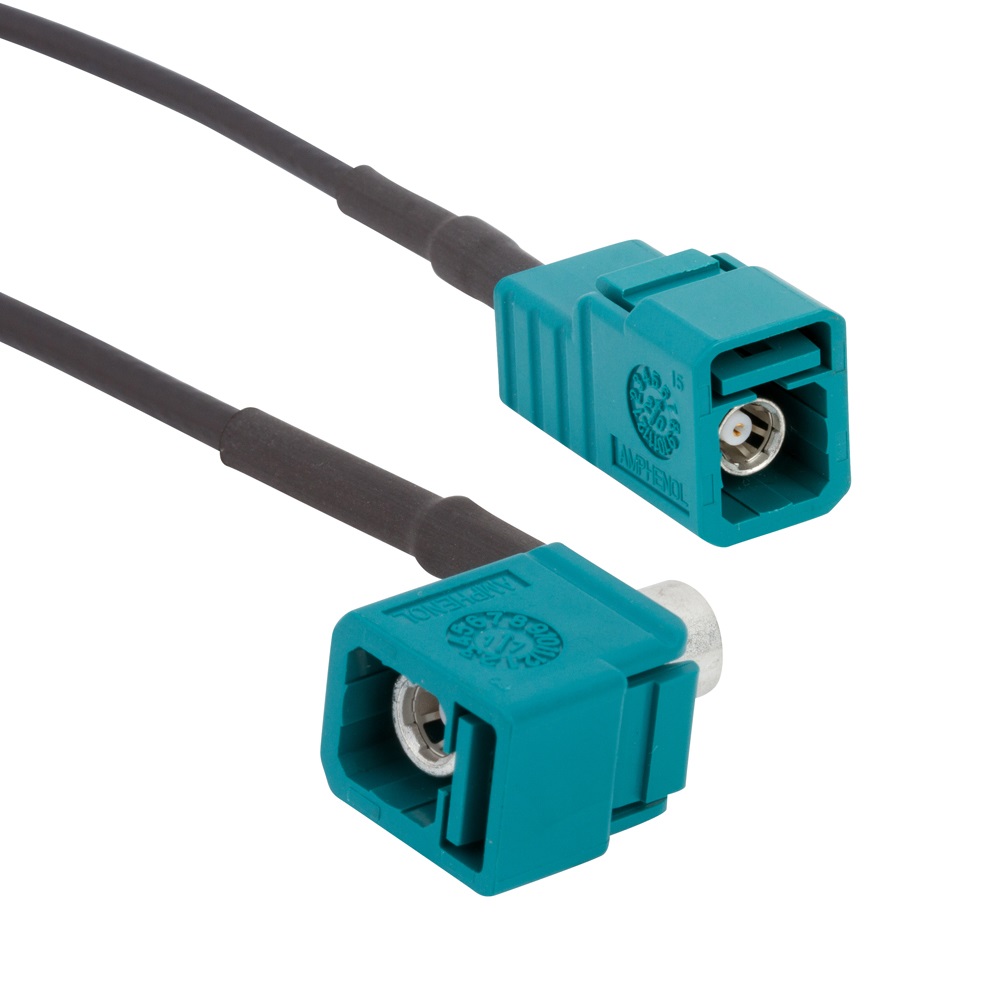

RF Cable Assembly FAKRA Right Angle Jack to FAKRA Straight Jack RG-174 50 Ohm 24 inchesch Z Key Code (610 mm)
FAKRA to FAKRA Cable Assemblies
095FJZFJZAH-024
$19.04
FAKRA Right Angle Jack to FAKRA Straight Jack RG-174 50 Ohm 24 inchesch Z Key Code (610 mm)
| Manufacturer | Amphenol RF |
|---|---|
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Frequency (Max GHz) | 3 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Connector 1 Series | FAKRA |
| Connector 1 Style | R/A Jack |
| Connector 1 Part Number | 3FA1ENZRJ-C01-3 |
| Connector 2 Series | FAKRA |
| Connector 2 Style | Str Jack |
| Connector 2 Part Number | 3FAQNZSJ-C01W0 |
| Cable Type | RG-174 |
| Cable Assembly Length | 24.00 in (610 mm) |
