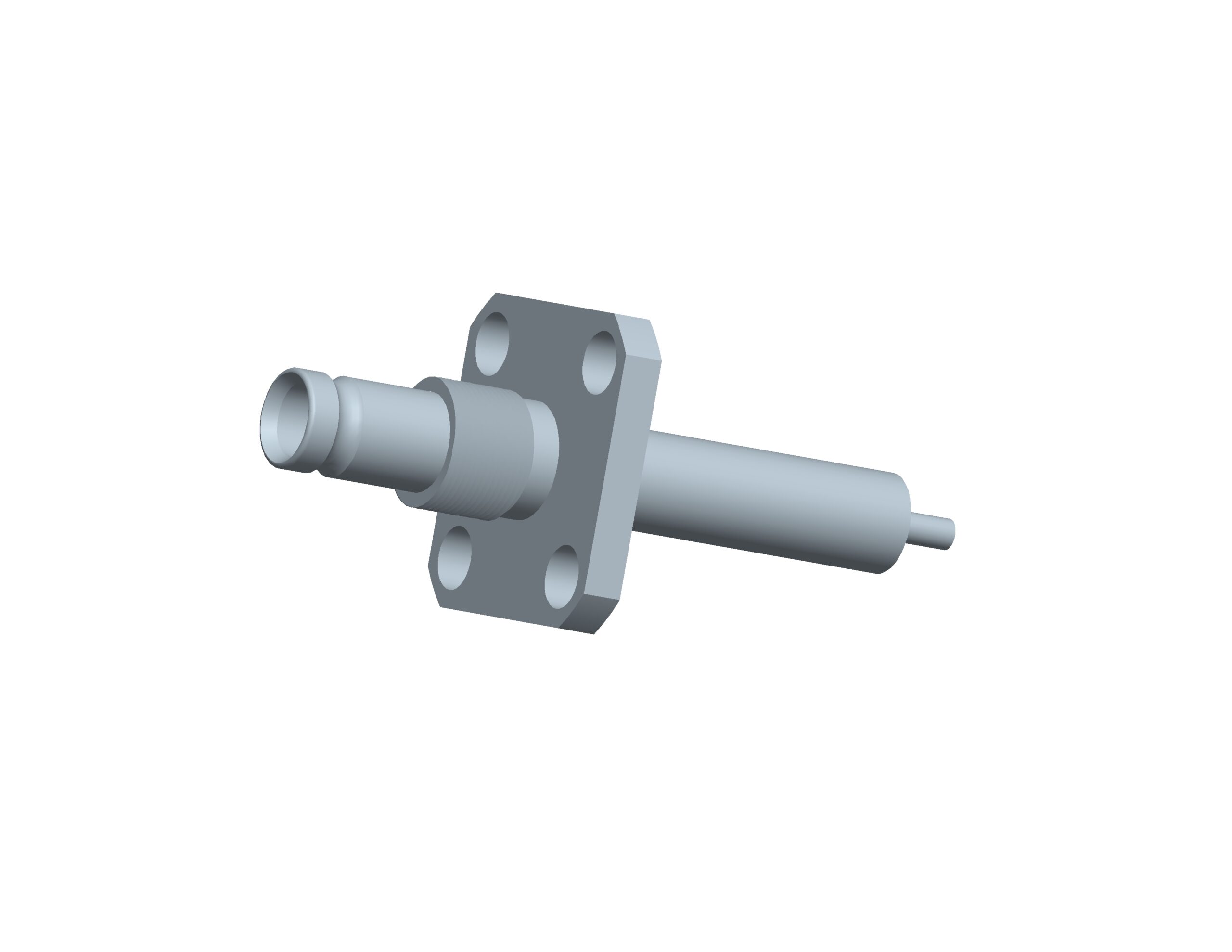

RF Connector 1.0-2.3 Straight Receptacle Jack Round Post 4-Hole Flange 50 Ohm
1.0-2.3 Connectors
102-233-10
$999.00
1.0-2.3 Straight Receptacle Jack Round Post 4-Hole Flange 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | 4-Hole Flange |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 10 |
| Temp (Max Degrees Celsius) | 155 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Push-Pull |
| Mating Cycles (Min) | 500 |
| Termination Style | Round Post |
| Post Length | 0.140 Inches (3.56 mm) |
| Extended Dielectric Length | 0.240 Inches (6.10 mm) |
