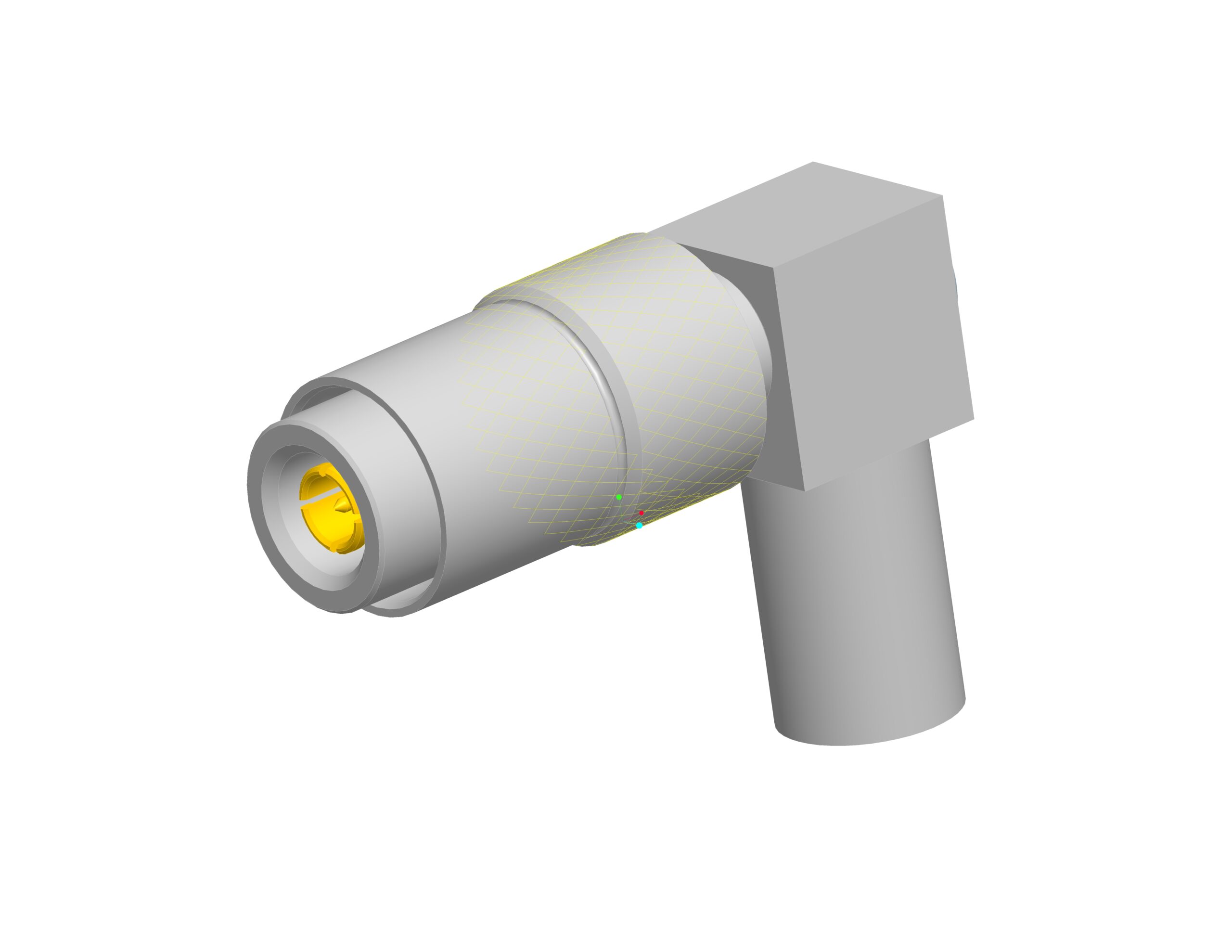

RF Connector 1.0-2.3 Right Angle Crimp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm
1.0-2.3 Connectors
102-799-104DB
$999.00
1.0-2.3 Right Angle Crimp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm
Manufacturer | Amphenol RF |
---|---|
Body Finish | Gold |
Body Material | Brass |
Cable Group | C1 |
Cable Type | Belden 83242, RG-142, RG-223, RG-400, RG-55, Times SF-142B |
Impedance (Ohms) | 50 |
Insulator Material | PTFE |
IP Rating | Not Rated |
Gender | Plug |
Panel Mounting Feature | Not Applicable |
Isolated | No |
Low PIM | No |
Frequency (Max GHz) | 10 |
Temp (Max Degrees Celsius) | 155 |
Temp (Min Degrees Celsius) | -40 |
Non Magnetic | No |
Contact Finish | Gold |
Contact Material | Brass |
Orientation | Right Angle |
Coupling Mechanism | Push-Pull |
Mating Cycles (Min) | 500 |
Termination Style | Cable – Crimp |
