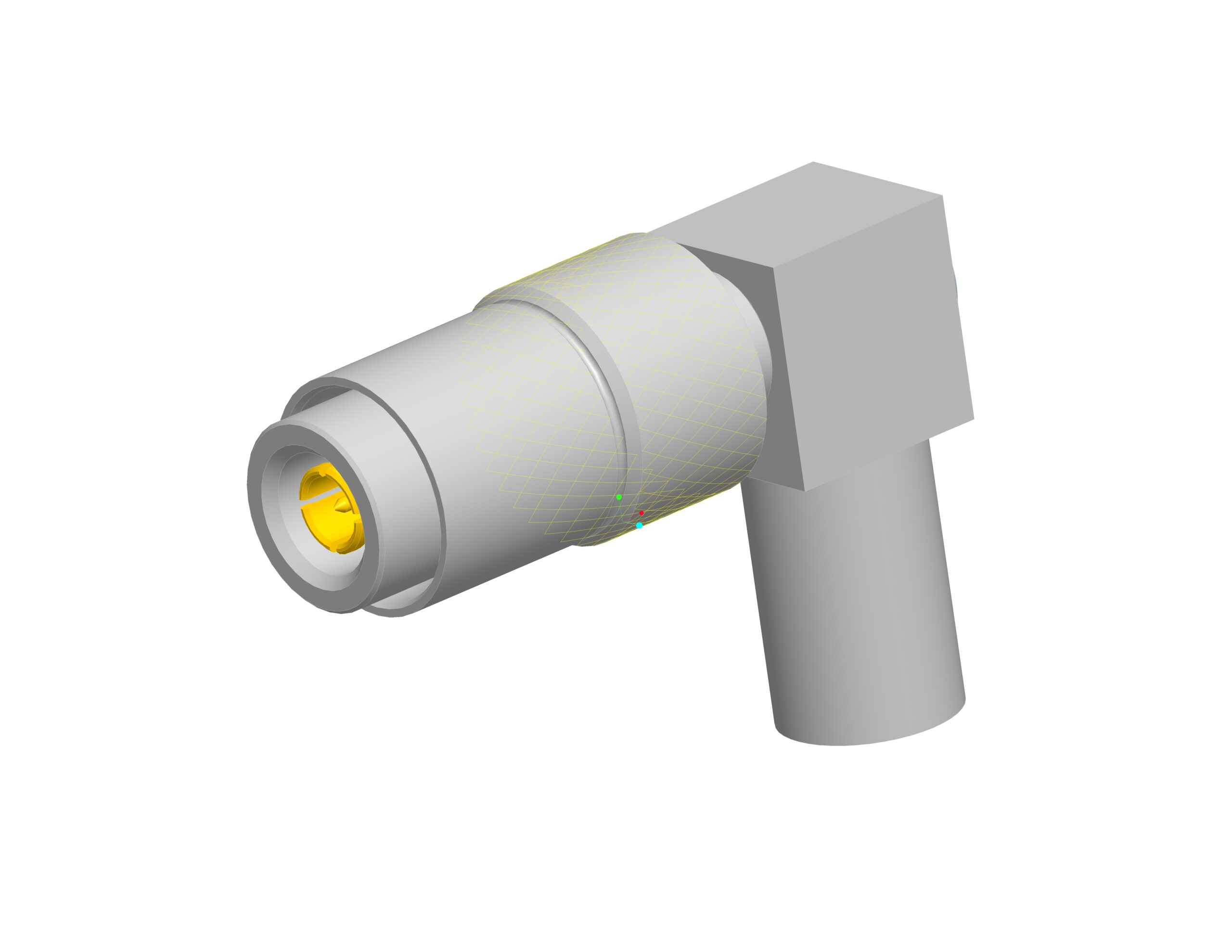

RF Connector 1.0-2.3 Right Angle Solder Plug 0.141-inch Conformable RG-402 Times Tflex 402 50 Ohm
1.0-2.3 Connectors
102-799-141
$999.00
1.0-2.3 Right Angle Solder Plug 0.141-inch Conformable RG-402 Times Tflex 402 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | SR2 |
| Cable Type | 0.141-inch Conformable, 0.141-inch Semi-Rigid, Belden 1673A, RG-402, Times Tflex 402 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 10 |
| Temp (Max Degrees Celsius) | 155 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Brass |
| Orientation | Right Angle |
| Coupling Mechanism | Push-Pull |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
