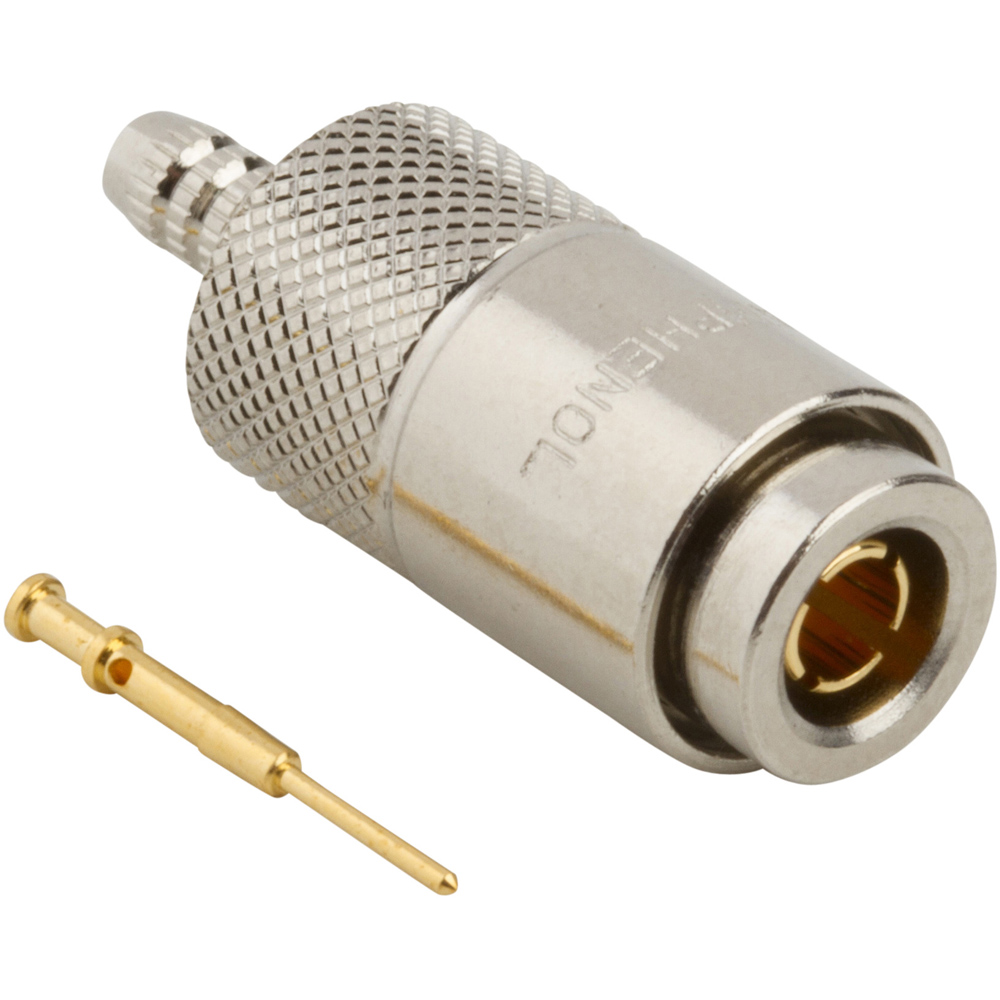

RF Connector 1.0-2.3 Straight Crimp Plug RG-316DS RD-316 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | B1 |
| Cable Type | RD-316, RG-316 Double Shield |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 10 |
| Temp (Max Degrees Celsius) | 155 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Brass |
| Orientation | Straight |
| Coupling Mechanism | Push-Pull |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | CTL-2 |
