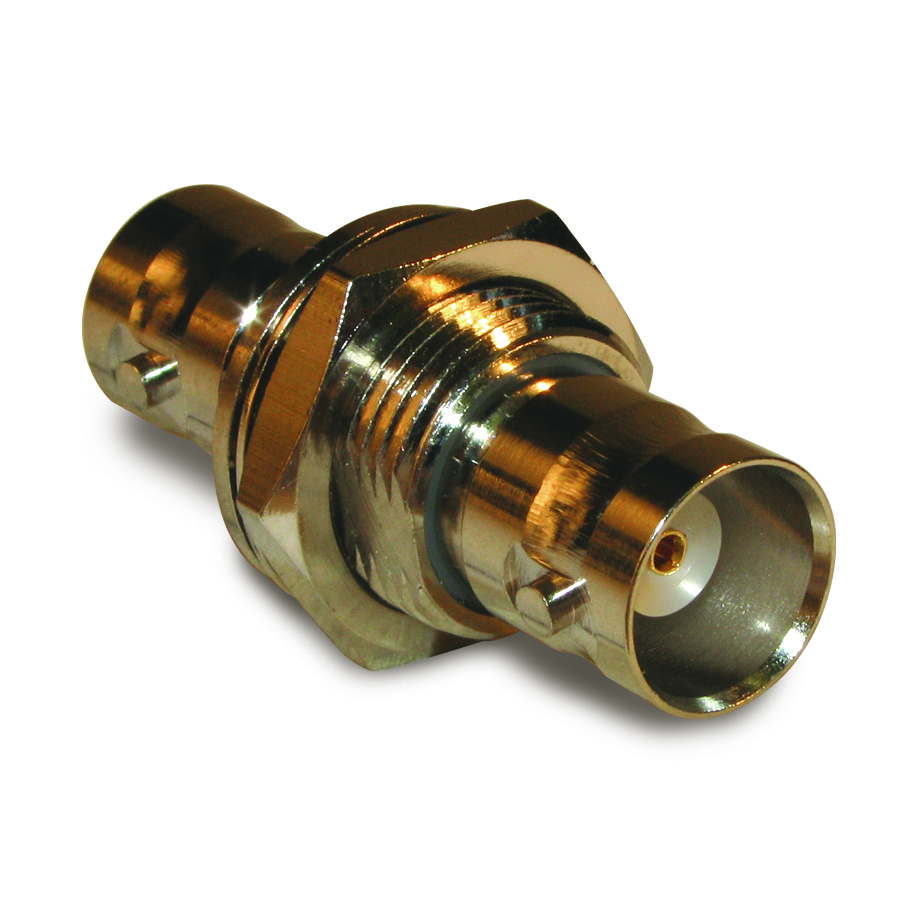

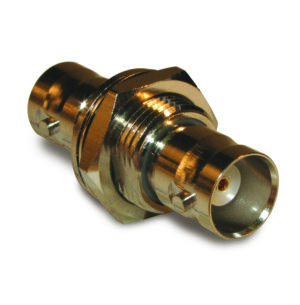

BNC Jack to BNC Jack Adapter 50 Ohm Straight Bulkhead Isolated
| Weight | 0.01276 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | Delrin |
| IP Rating | Not Rated |
| Panel Mounting Feature | Bulkhead |
| Operating Level | Commercial |
| Isolated | Yes |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Adapter Side 1 Series | BNC |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | BNC |
| Adapter Side 2 Style | Jack |
| Contact Finish | Gold |
| Orientation | Straight |
