112533RP

$7.80

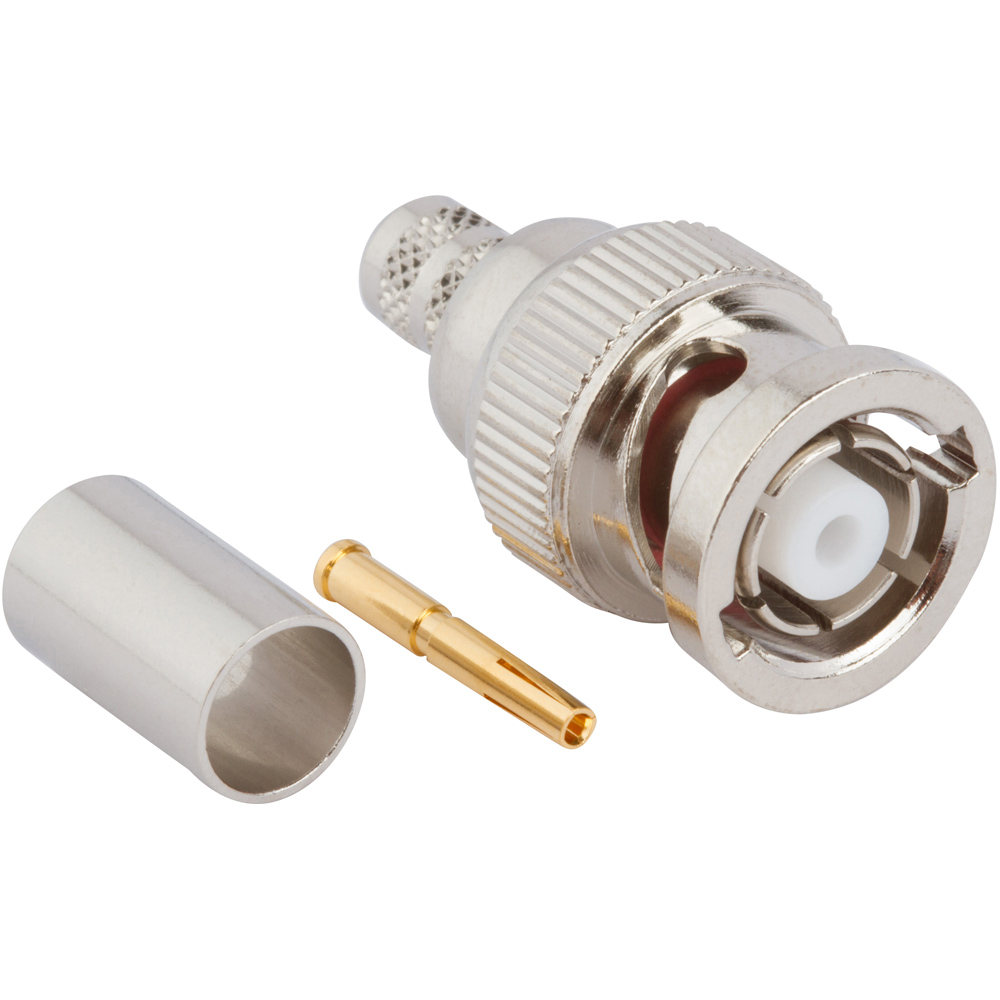

RP-BNC Straight Crimp Plug RG-8X Times LMR-240 50 Ohm

Quantity	100
Price	$7.80

Summary
112533RP	$7.80
1x	$7.80

SKU: 112533RP Category: RP-BNC Connectors

RF Connector RP-BNC Straight Crimp Plug RG-8X Times LMR-240 50 Ohm

Weight	0.015375 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	X
Cable Type	Belden 9258, RG-8X, Times LMR-240, Times LMR-240 UltraFlex
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Contact Finish	Gold
Contact Material	Phosphor Bronze
Orientation	Straight
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10070
