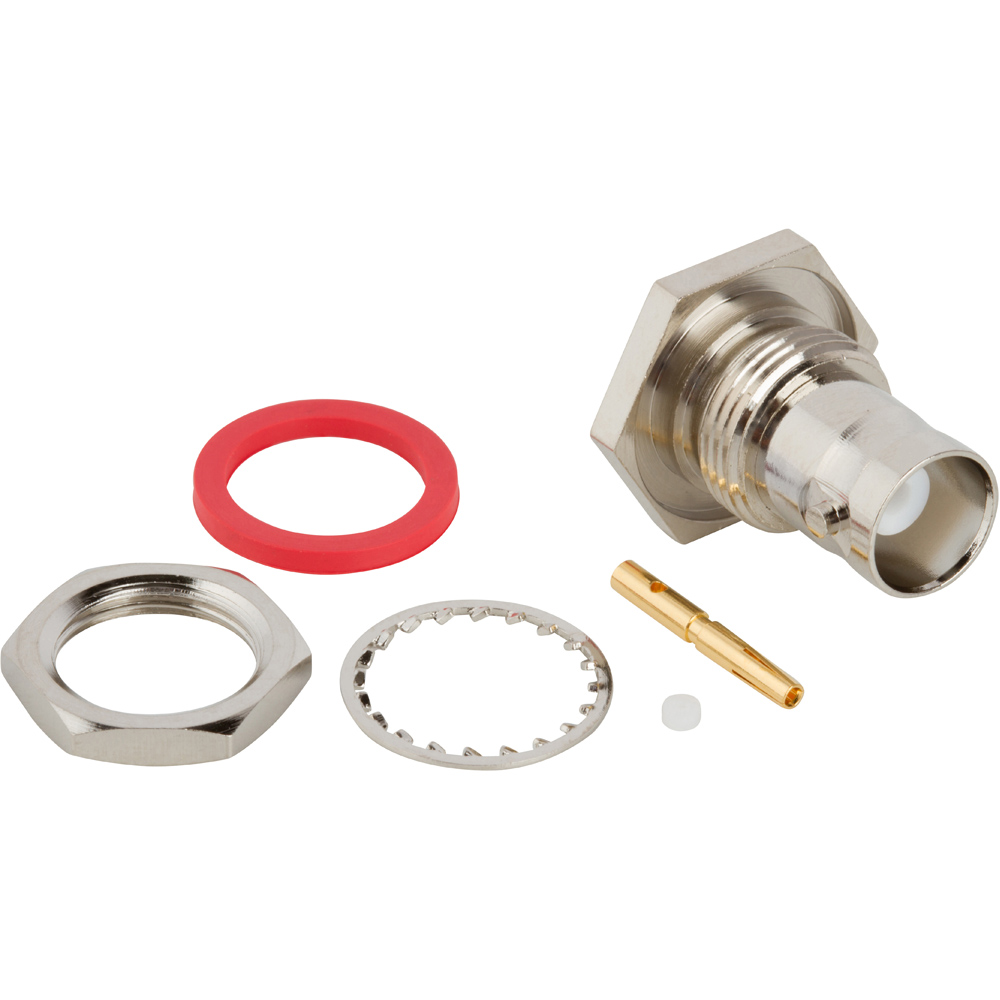

RF Connector BNC Straight Solder Jack 0.085-inch Conformable 0.086-inch Conformable RG-405 Bulkhead Rear Mount 50 Ohm
BNC Connectors
112580
$3.78
BNC Straight Solder Jack 0.085-inch Conformable 0.086-inch Conformable RG-405 Bulkhead Rear Mount 50 Ohm
| Weight | 0.01542 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel/Gold |
| Body Material | Brass |
| Cable Group | SR1 |
| Cable Type | 0.085-inch Conformable, 0.085-inch Semi-Rigid, 0.086-inch Conformable, 0.086-inch Semi-Rigid, Belden 1671A, RG-405, Times Tflex 405 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Orientation | Straight |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
