RF Connector BNC Right Angle Crimp Plug RG-8X Times LMR-240 50 Ohm
BNC Connectors
112601
$5.62

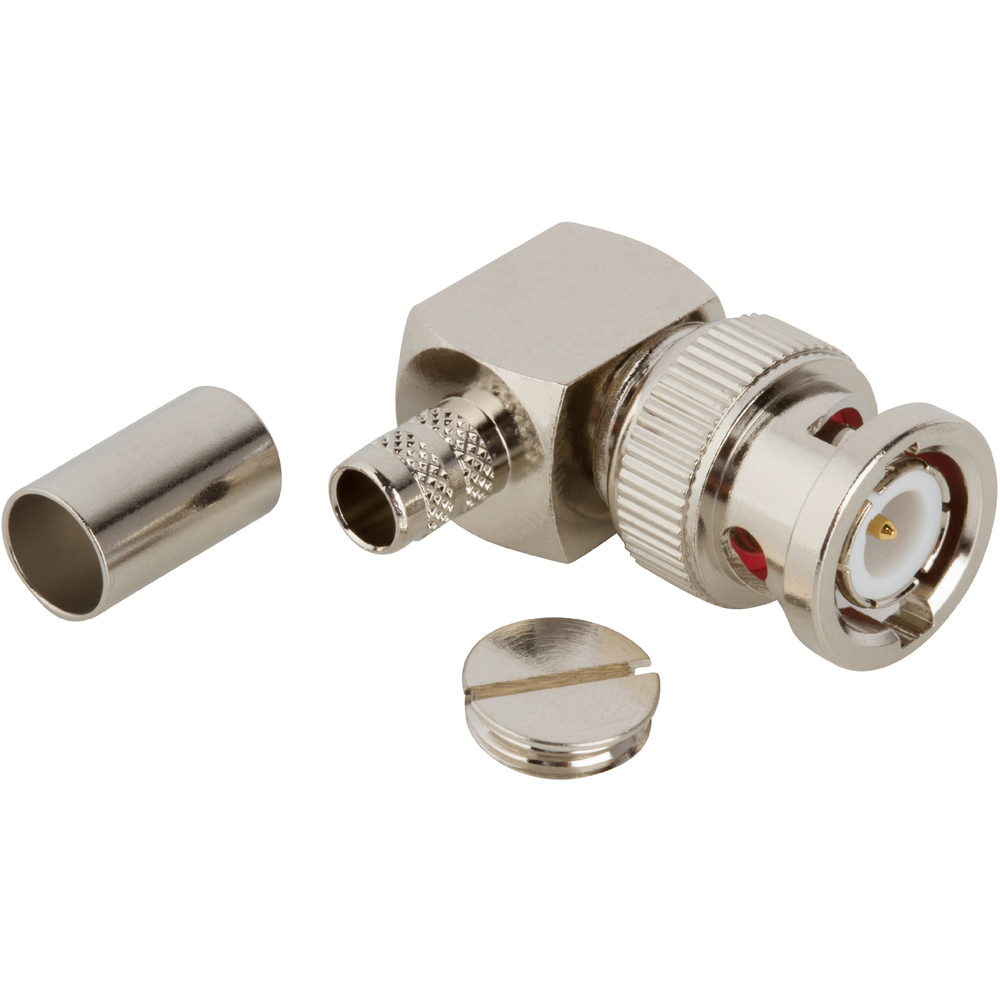

BNC Right Angle Crimp Plug RG-8X Times LMR-240 50 Ohm
Availability: 64 in stock
| Weight | 0.0201 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | X |
| Cable Type | Belden 9258, RG-8X, Times LMR-240, Times LMR-240 UltraFlex |
| Impedance (Ohms) | 50 |
| Insulator Material | Delrin |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | 47-10070 |
