112966

$4.94

BNC Straight Crimp Jack Belden 1695A 75 Ohm

Quantity	100
Price	$4.94

Summary
112966	$4.94
1x	$4.94

SKU: 112966 Category: BNC Connectors

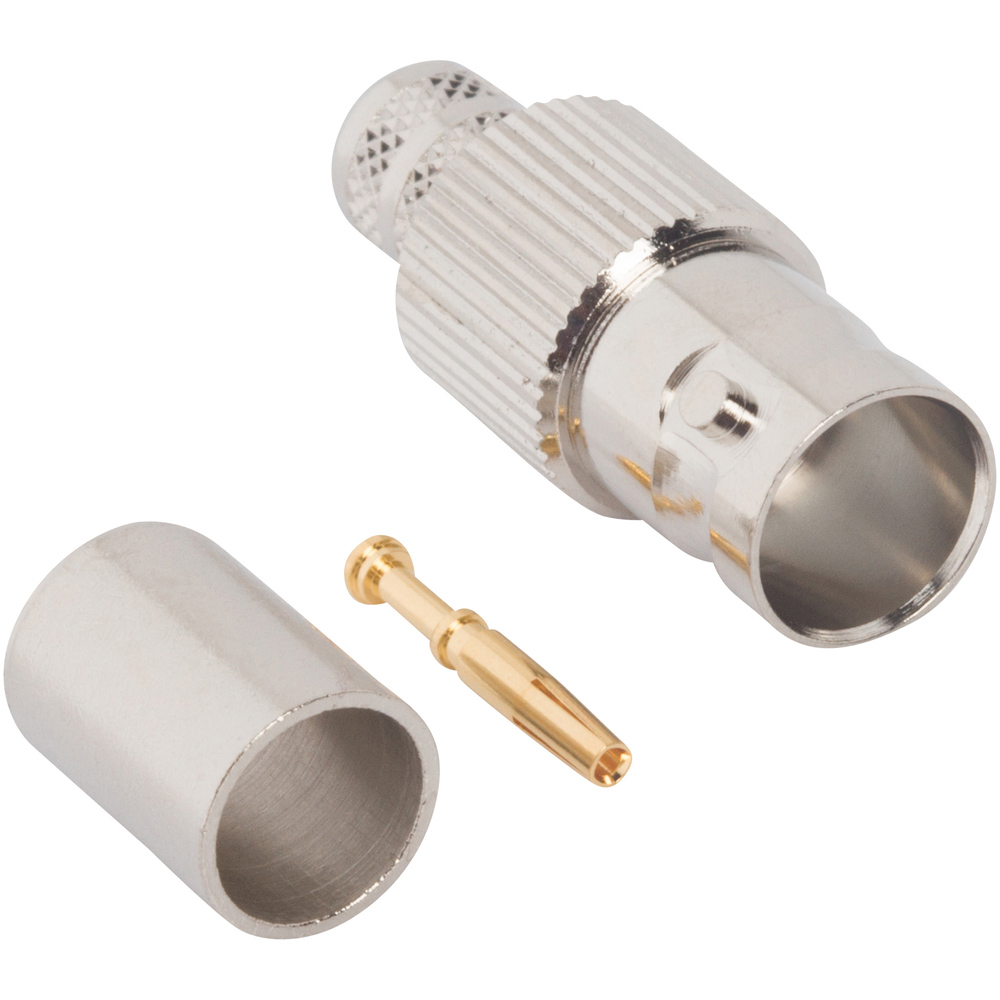

RF Connector BNC Straight Crimp Jack Belden 1695A 75 Ohm

Weight	0.0113 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	Q1
Cable Type	Belden 1695A, Belden 4694P, Belden 82120, Belden 82248, Belden 87120, Belden 89120, Belden 89248
Impedance (Ohms)	75
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Contact Finish	Gold
Contact Material	Phosphor Bronze
Orientation	Straight
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10110
