Name: 122125
SKU: 122125
Price: 2.66 USD
Availability: InStock

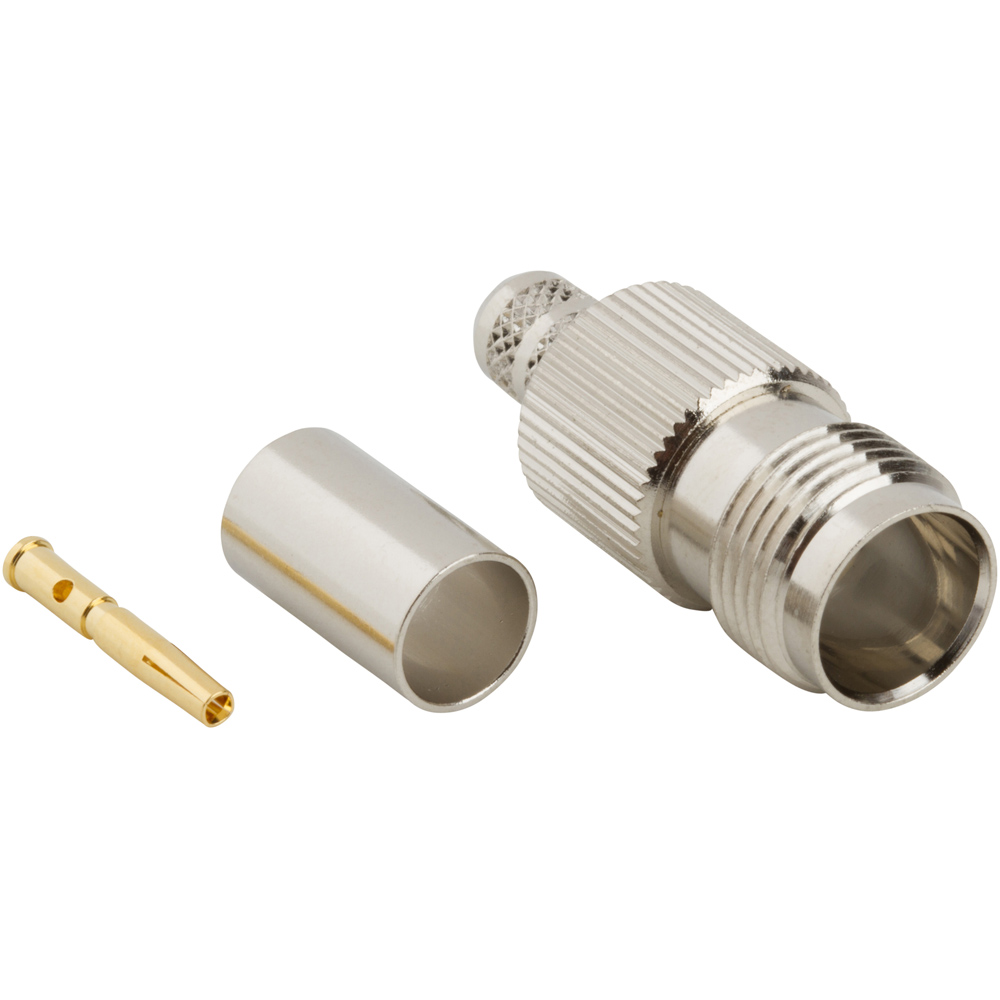

RF Connector TNC Straight Crimp Jack RG-59 RG-62 75 Ohm

Weight	0.01225 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	D
Cable Type	Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S, RG-59, RG-62
Impedance (Ohms)	75
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	1
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Orientation	Straight
Contact Termination	Crimp
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10070
