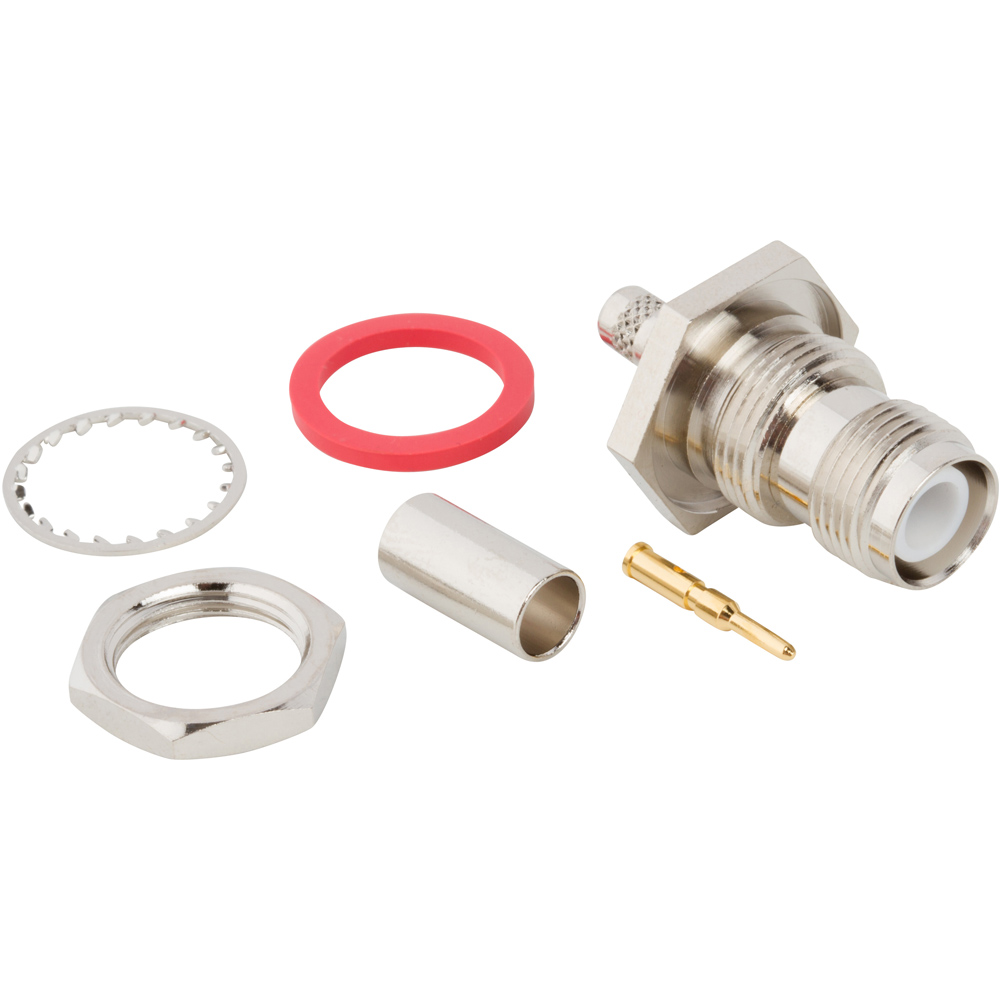

RF Connector RP-TNC Straight Crimp Jack RG-58 RG-141 Times LMR-195 Bulkhead Rear Mount 50 Ohm
RP-TNC Connectors
122160RP
$4.26
RP-TNC Straight Crimp Jack RG-58 RG-141 Times LMR-195 Bulkhead Rear Mount 50 Ohm
| Weight | 0.0175 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | C |
| Cable Type | Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 11 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Orientation | Straight |
| Contact Termination | Crimp |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | 47-10070 |
