122358

$3.50

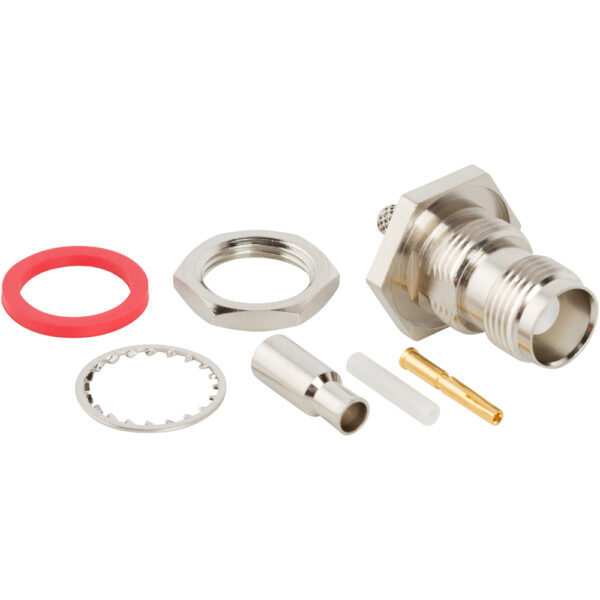

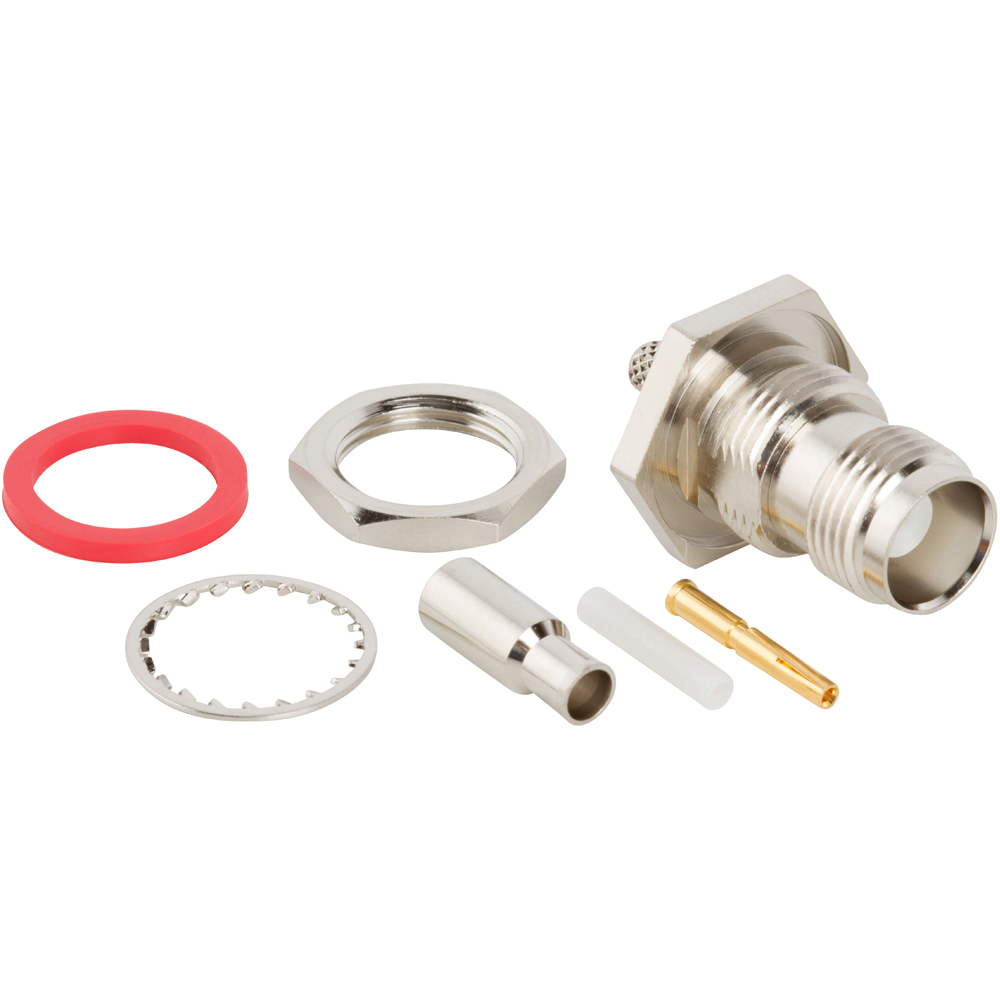

TNC Straight Crimp Jack RG-316DS RD-316 Bulkhead Rear Mount 50 Ohm

Quantity 100 - 499 500 - 999 1000
Price $3.50 $3.10 $2.68
Summary
122358$3.50
$3.50
SKU: 122358 Category:

RF Connector TNC Straight Crimp Jack RG-316DS RD-316 Bulkhead Rear Mount 50 Ohm

Weight 0.01633 kg
Manufacturer

Amphenol RF

Body Finish

Nickel

Body Material

Brass

Cable Group

B1

Cable Type

RD-316, RG-316 Double Shield

Impedance (Ohms)

50

Insulator Material

Delrin

IP Rating

Not Rated

Gender

Jack

Panel Mounting Feature

Bulkhead – Rear Mount

Operating Level

Commercial

Isolated

No

Low PIM

No

Frequency (Max GHz)

11

Temp (Max Degrees Celsius)

85

Temp (Min Degrees Celsius)

-40

Non Magnetic

No

Thread Direction

Standard

Contact Finish

Gold

Orientation

Straight

Contact Termination

Solder

Coupling Mechanism

Threaded

Mating Cycles (Min)

500

Termination Style

Cable – Crimp

Assembly Tool

47-10150
