122389

$4.57

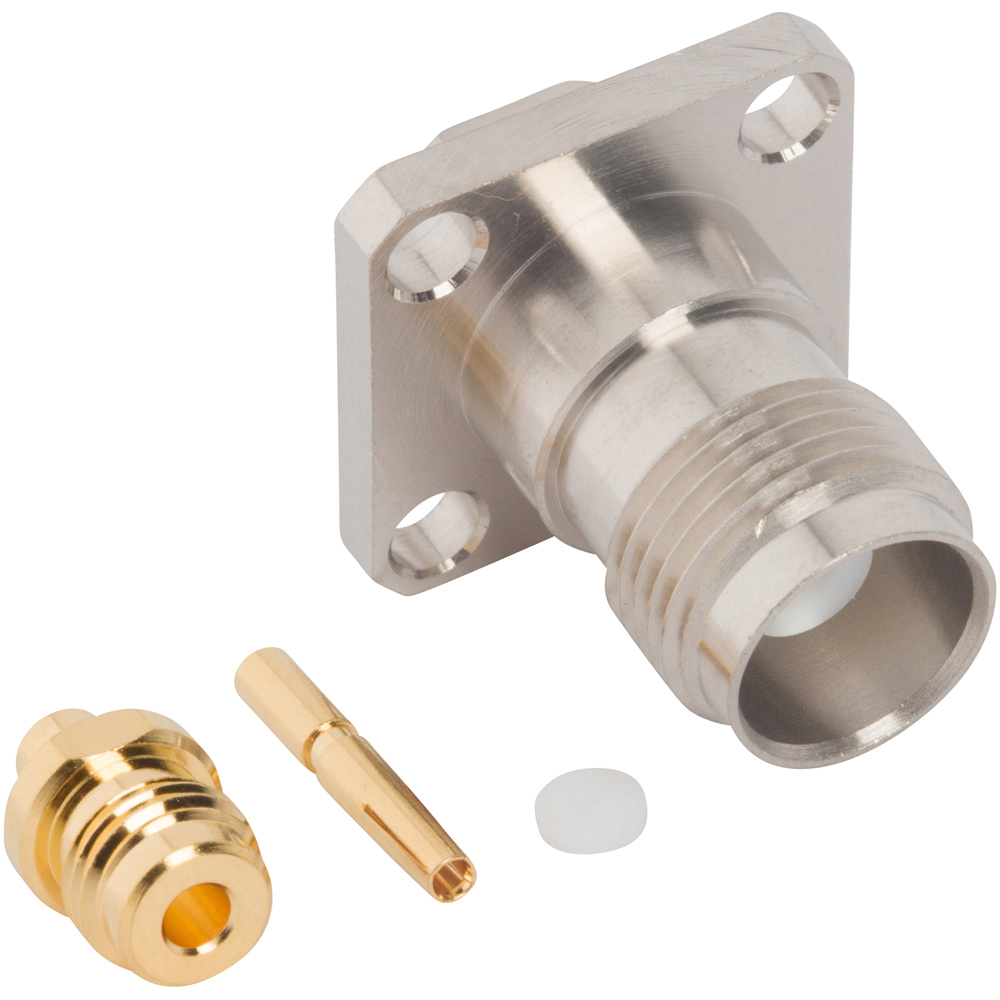

TNC Straight Solder Jack 0.085-inch Conformable 0.086-inch Conformable RG-405 4-Hole Flange 50 Ohm

Quantity	100 - 249	250 - 499	500 - 999	1000
Price	$4.57	$4.44	$4.15	$3.99

Summary
122389	$4.57
1x	$4.57

SKU: 122389 Category: TNC Connectors

RF Connector TNC Straight Solder Jack 0.085-inch Conformable 0.086-inch Conformable RG-405 4-Hole Flange 50 Ohm

Weight	0.0136 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	SR1
Cable Type	0.085-inch Conformable, 0.085-inch Semi-Rigid, 0.086-inch Conformable, 0.086-inch Semi-Rigid, Belden 1671A, RG-405, Times Tflex 405
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	4-Hole Flange
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	11
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Orientation	Straight
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Solder
