122400

$3.97

TNC Straight Solder Jack 0.085-inch Conformable 0.086-inch Conformable RG-405 Bulkhead Rear Mount 50 Ohm

Quantity	100 - 499	500 - 999	1000
Price	$3.97	$3.51	$3.07

Summary
122400	$3.97
1x	$3.97

SKU: 122400 Category: TNC Connectors

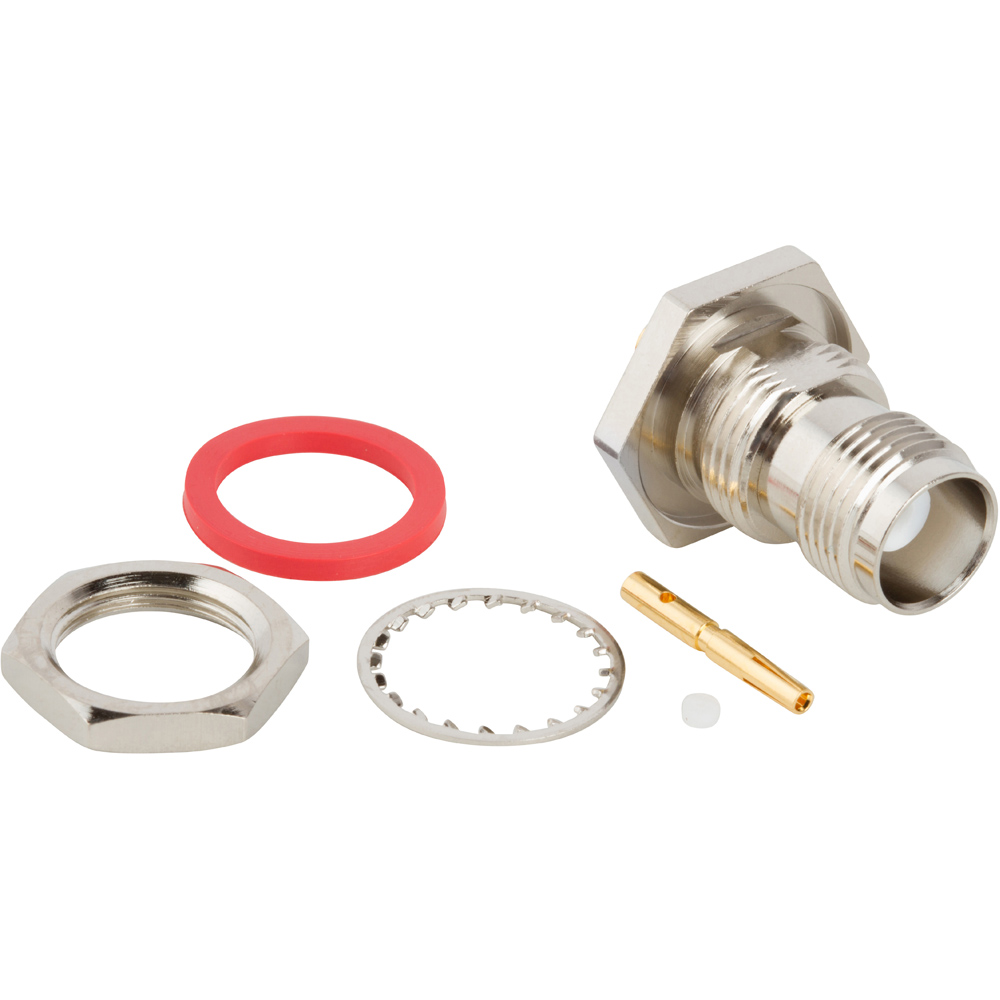

RF Connector TNC Straight Solder Jack 0.085-inch Conformable 0.086-inch Conformable RG-405 Bulkhead Rear Mount 50 Ohm

Weight	0.0161 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	SR1
Cable Type	0.085-inch Conformable, 0.085-inch Semi-Rigid, 0.086-inch Conformable, 0.086-inch Semi-Rigid, Belden 1671A, RG-405, Times Tflex 405
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Bulkhead – Rear Mount
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	11
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Orientation	Straight
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Solder
