Name: 122428
SKU: 122428
Price: 3.65 USD
Availability: InStock

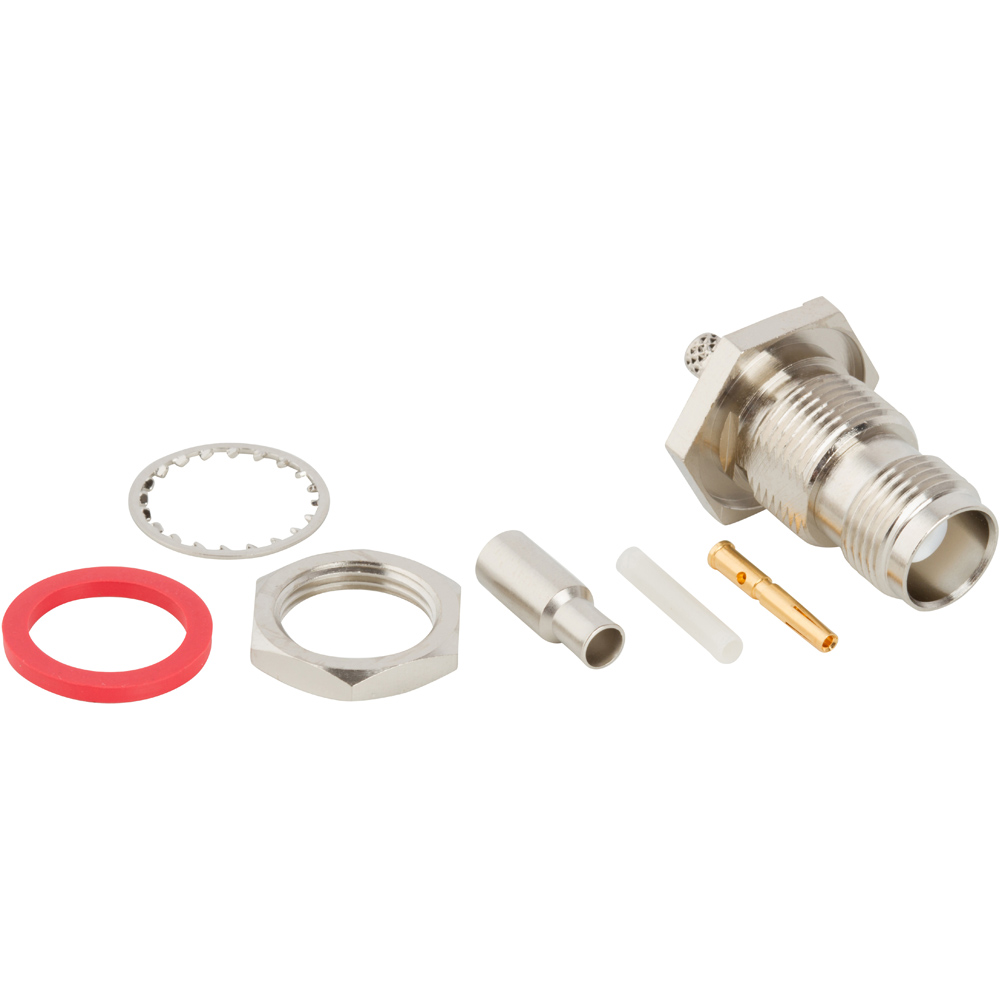

RF Connector TNC Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A Bulkhead Rear Mount 50 Ohm

Weight	0.0193 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	B
Cable Type	Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Leoni DACAR 462, Leoni DACAR 462-2, RG-174, RG-188, RG-316, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Times LMR-100A, Times RG-174LL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Bulkhead – Rear Mount
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	11
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Orientation	Straight
Contact Termination	Crimp
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10150

Reviews

There are no reviews yet.

Be the first to review “122428”

Quantity	100 - 499	500 - 999	1000
Price	$3.65	$3.23	$2.81
