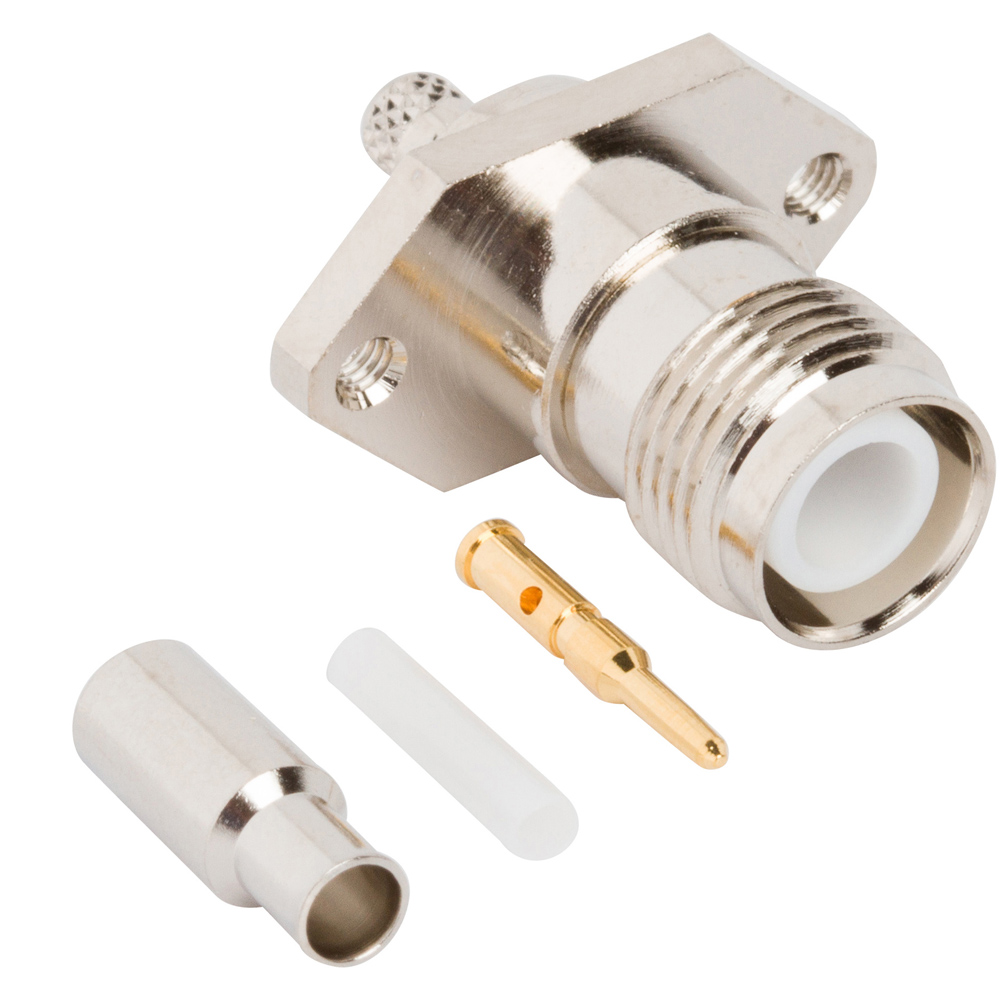

RF Connector RP-TNC Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A 2-Hole Flange 50 Ohm
RP-TNC Connectors
122458RP
$999.00
RP-TNC Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A 2-Hole Flange 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | B |
| Cable Type | Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Leoni DACAR 462, Leoni DACAR 462-2, RG-174, RG-188, RG-316, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Times LMR-100A, Times RG-174LL |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | 2-Hole Flange |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 11 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Orientation | Straight |
| Contact Termination | Crimp |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | 47-10150 |
