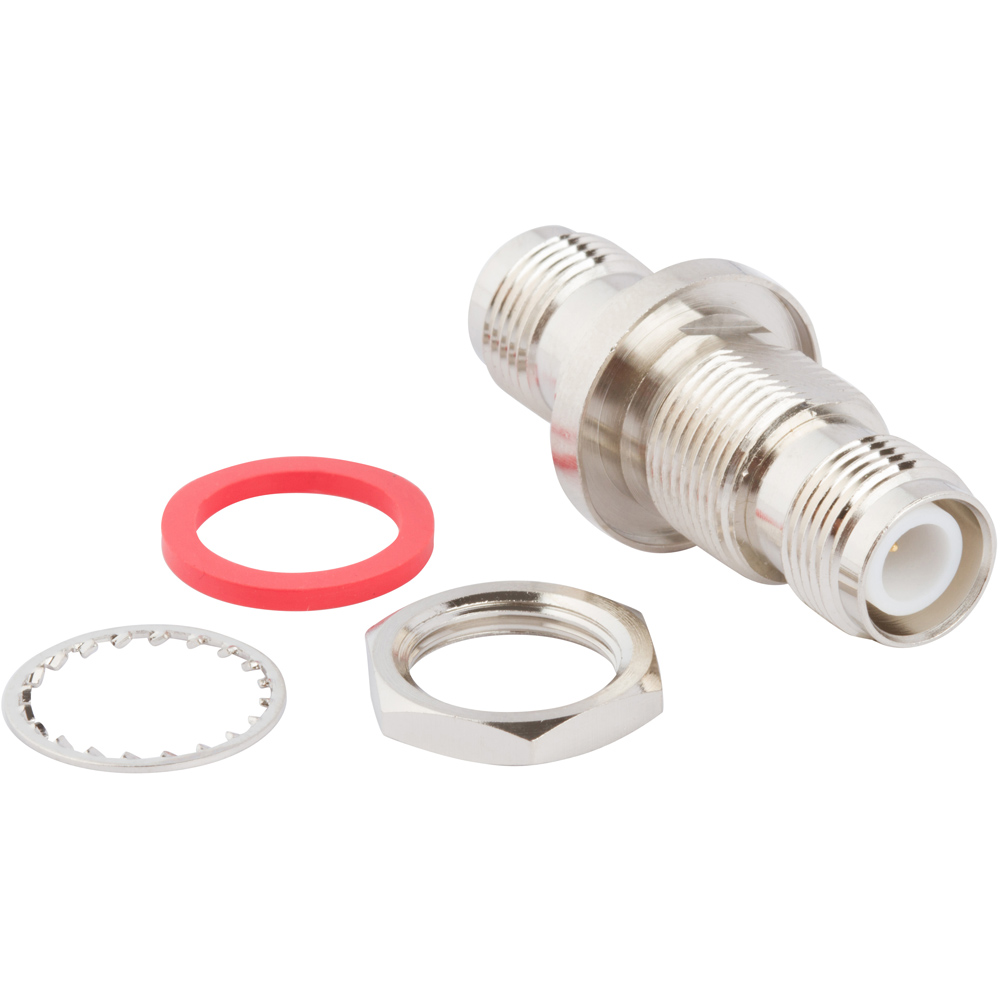

RP-TNC Jack to RP-TNC Jack Adapter 50 Ohm Straight Bulkhead
RP-TNC to RP-TNC Adapters
122485RP-RP
$999.00
RP-TNC Jack to RP-TNC Jack Adapter 50 Ohm Straight Bulkhead
| Weight | 0.0229 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Bulkhead |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 11 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Adapter Side 1 Series | RP-TNC |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | RP-TNC |
| Adapter Side 2 Style | Jack |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
