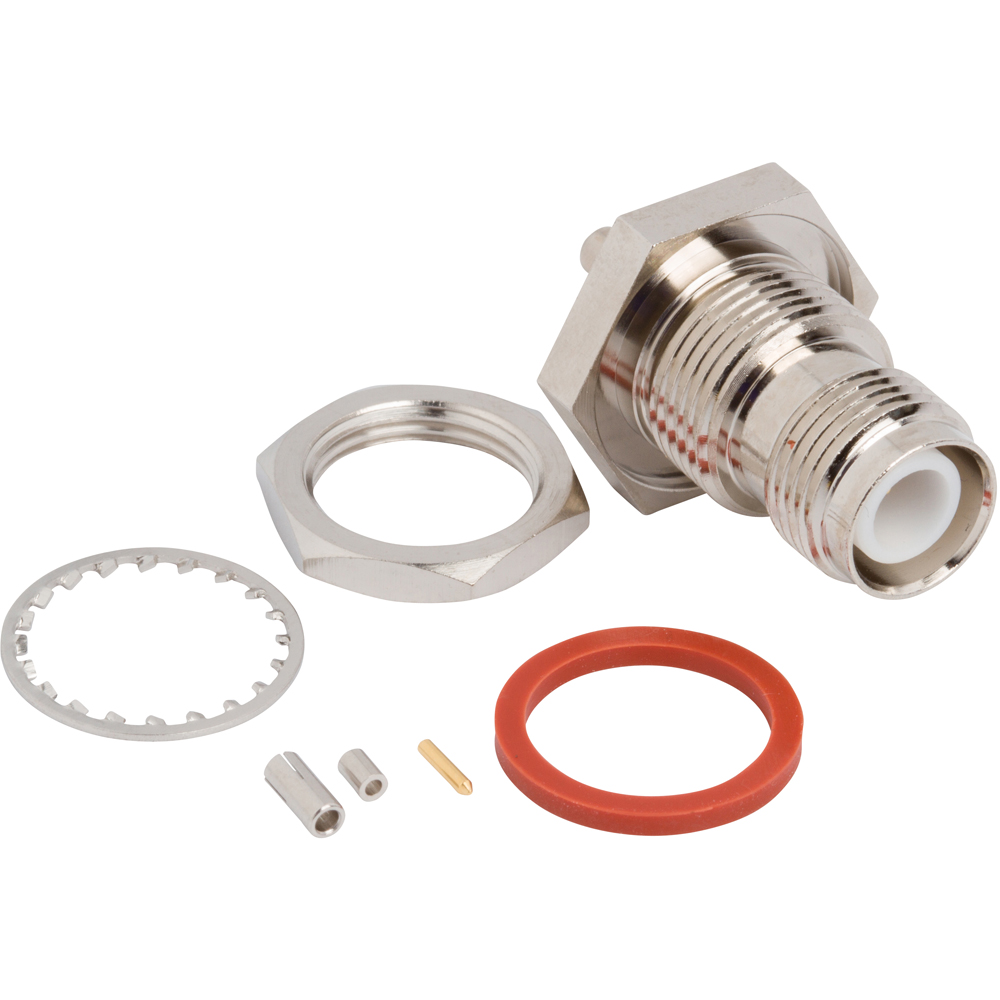

RF Connector RP-TNC Straight Crimp Jack 1.37 mm Micro-cable Bulkhead Rear Mount 50 Ohm
RP-TNC Connectors
122532RP
$999.00
RP-TNC Straight Crimp Jack 1.37 mm Micro-cable Bulkhead Rear Mount 50 Ohm
| Weight | 0.019304 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | P4 |
| Cable Type | 1.37 mm Micro-cable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 11 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Orientation | Straight |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
