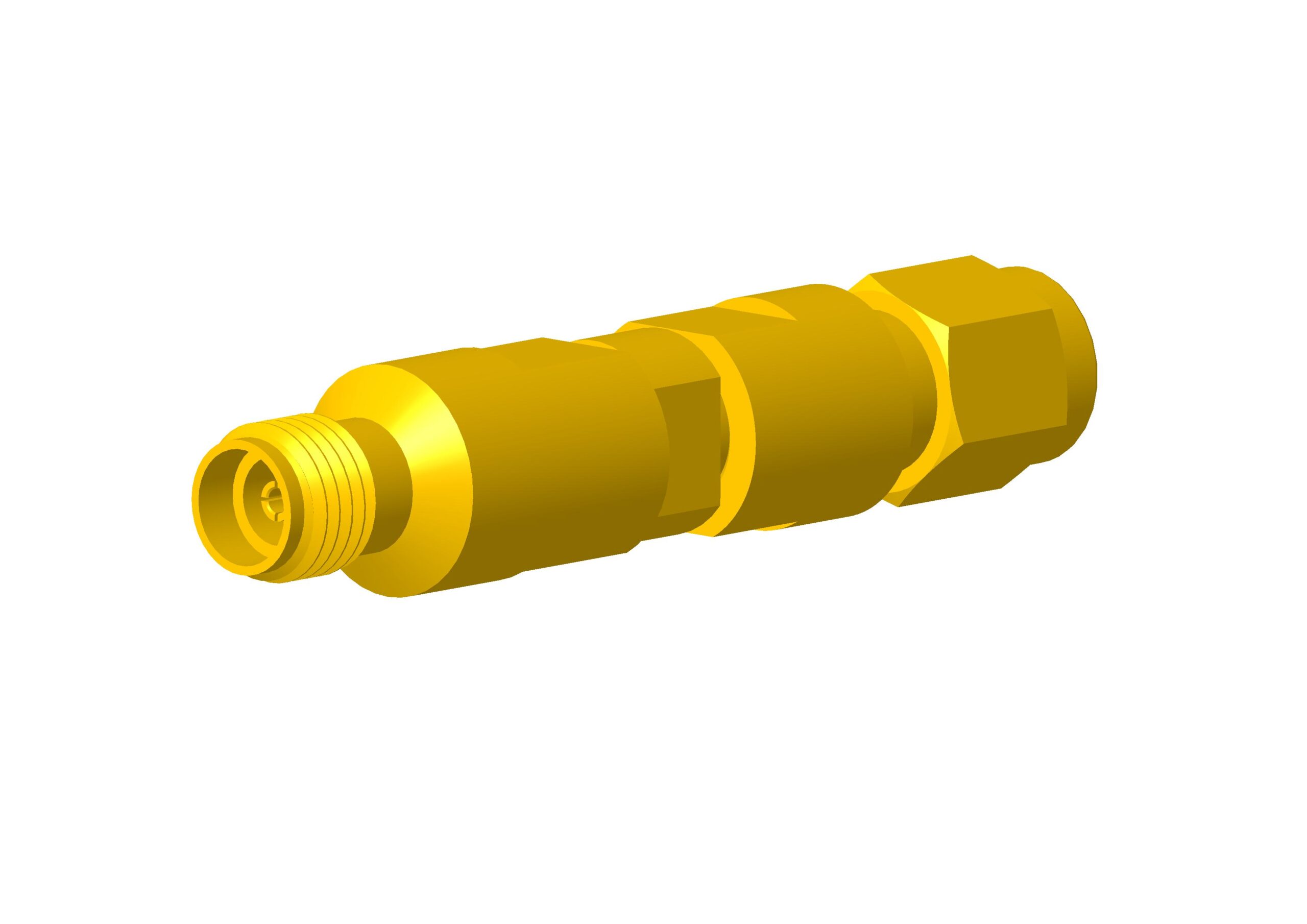

APC 3.5 Jack to APC 3.5 Plug Adapter 50 Ohm Straight
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Precision |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 26.5 |
| Temp (Min Degrees Celsius) | |
| Non Magnetic | No |
| Adapter Side 1 Series | APC 3.5 |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | APC 3.5 |
| Adapter Side 2 Style | Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Orientation | Straight |
