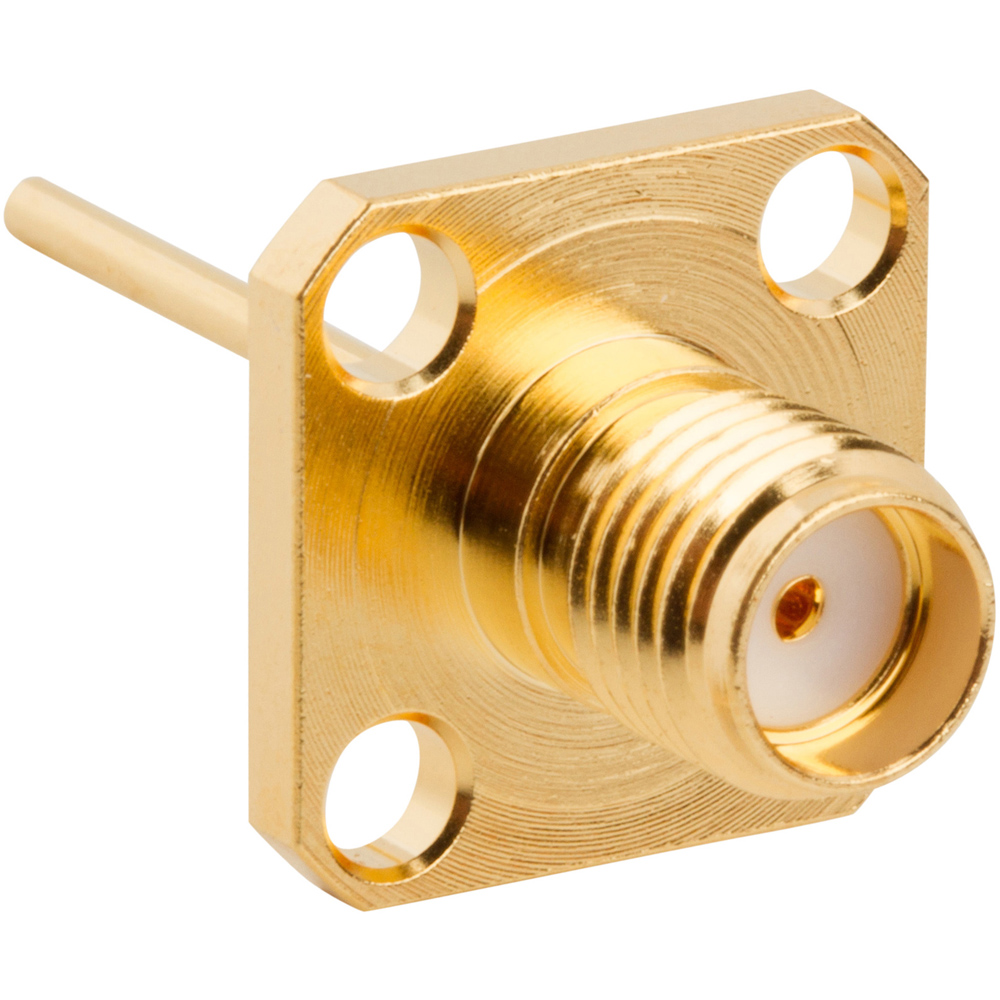

RF Connector SMA Panel Mount Jack 4-Hole Flange Round Post 50 Ohm 0.275 Post 0.157 PTFE
SMA Connectors
132146-19
$999.00
SMA Panel Mount Jack 4-Hole Flange Round Post 50 Ohm 0.275 Post 0.157 PTFE
| Weight | 0.00428 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | 4-Hole Flange |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 12.4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Round Post |
| Post Length | 0.705 Inches (17.91 mm) |
| Extended Dielectric Length | 0.030 Inches (0.76 mm) |
