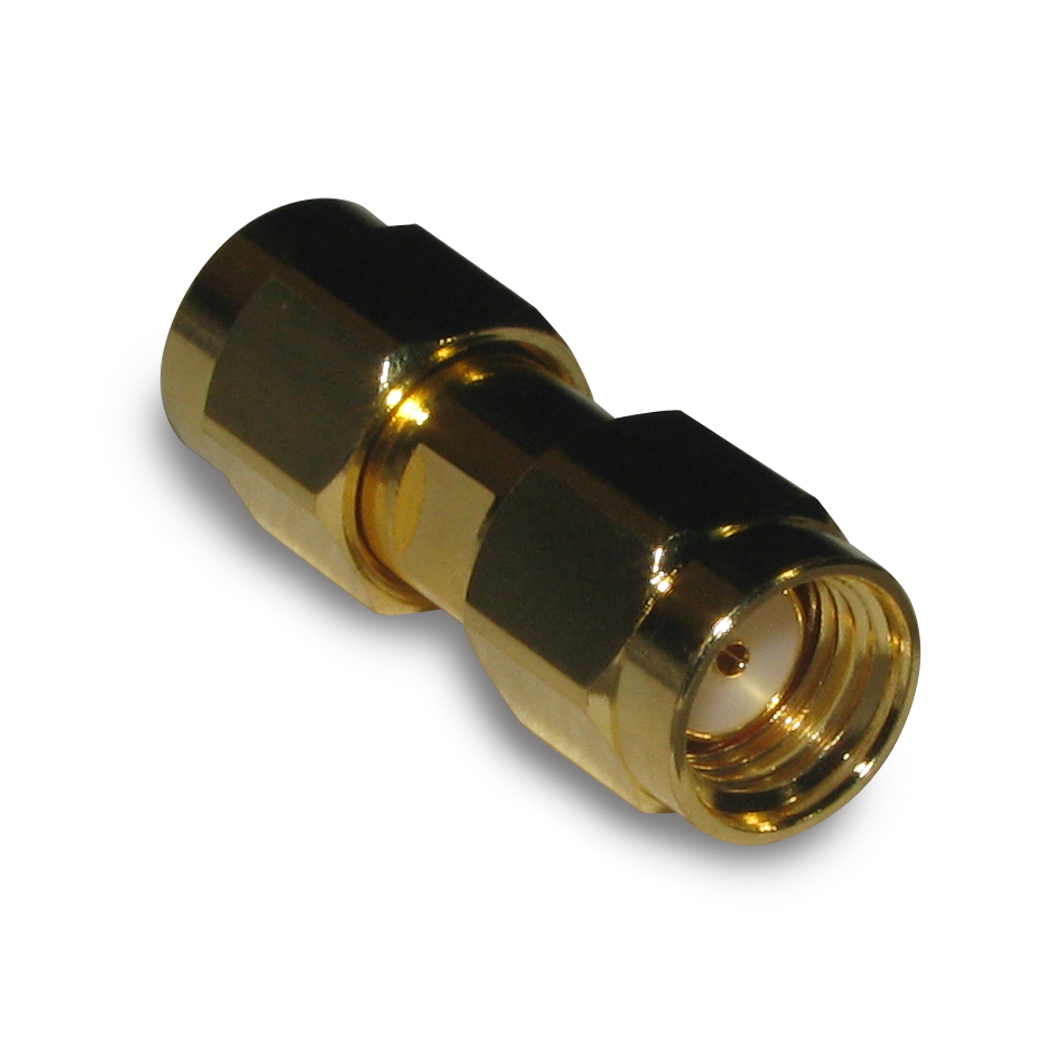

SMA Plug to RP-SMA Plug Adapter 50 Ohm Straight
RP-SMA to SMA Adapters, SMA to RP-SMA Adapters
132168RP
$20.00
SMA Plug to RP-SMA Plug Adapter 50 Ohm Straight
| Weight | 0.0052 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 18 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | RP-SMA |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | SMA |
| Adapter Side 2 Style | Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
