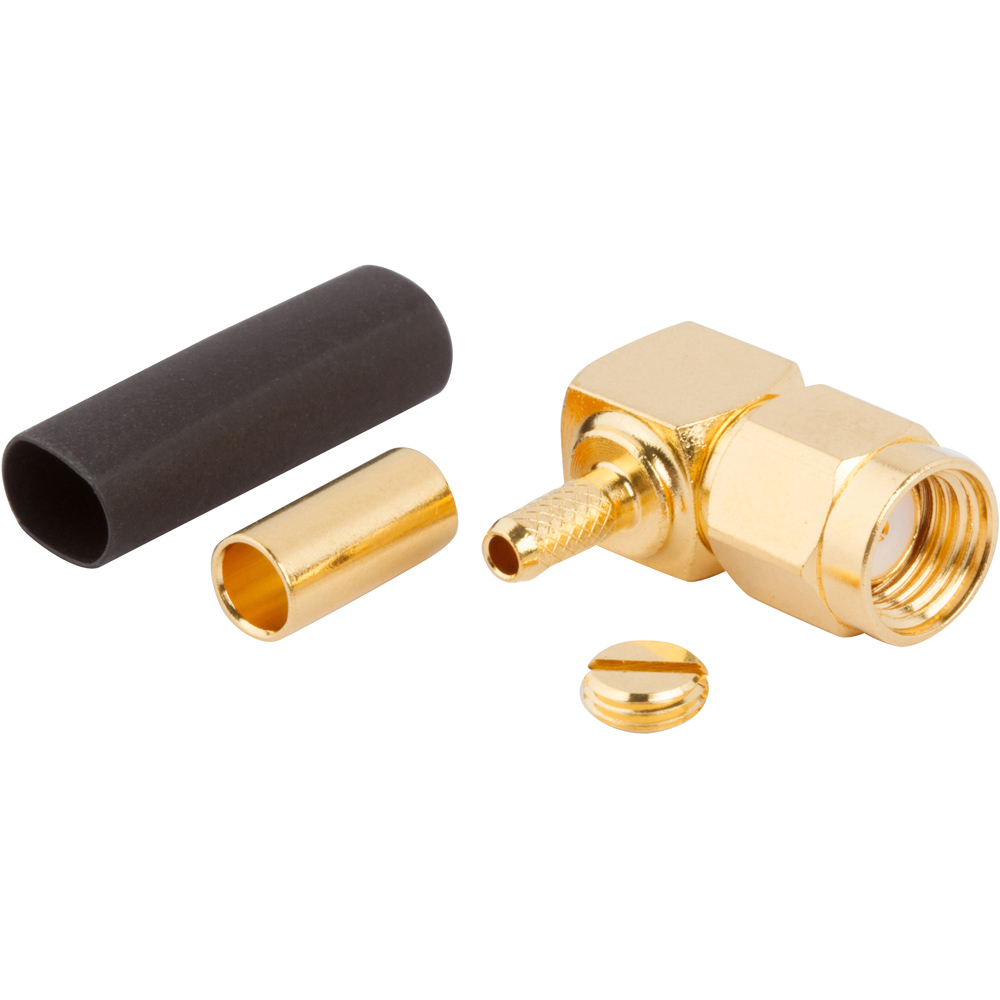

RF Connector RP-SMA Right Angle Crimp Plug RG-316DS 50 Ohm
| Weight | 0.00562 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | B1 |
| Cable Type | RD-316, RG-316 Double Shield |
| Impedance (Ohms) | 50 |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Orientation | Right Angle |
| Contact Termination | Solder |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
