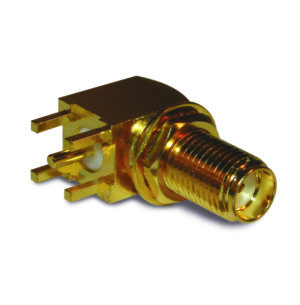

RF Connector SMA Right Angle PCB Through Hole Jack 50 Ohm 0.085 in Legs
SMA Connectors
132203-10
$999.00
SMA Right Angle PCB Through Hole Jack RG-405 0.086-inch Conformable Bulkhead 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | SR1 |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Isolated | No |
| Low PIM | No |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Orientation | Right Angle |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | PCB – Through Hole |
