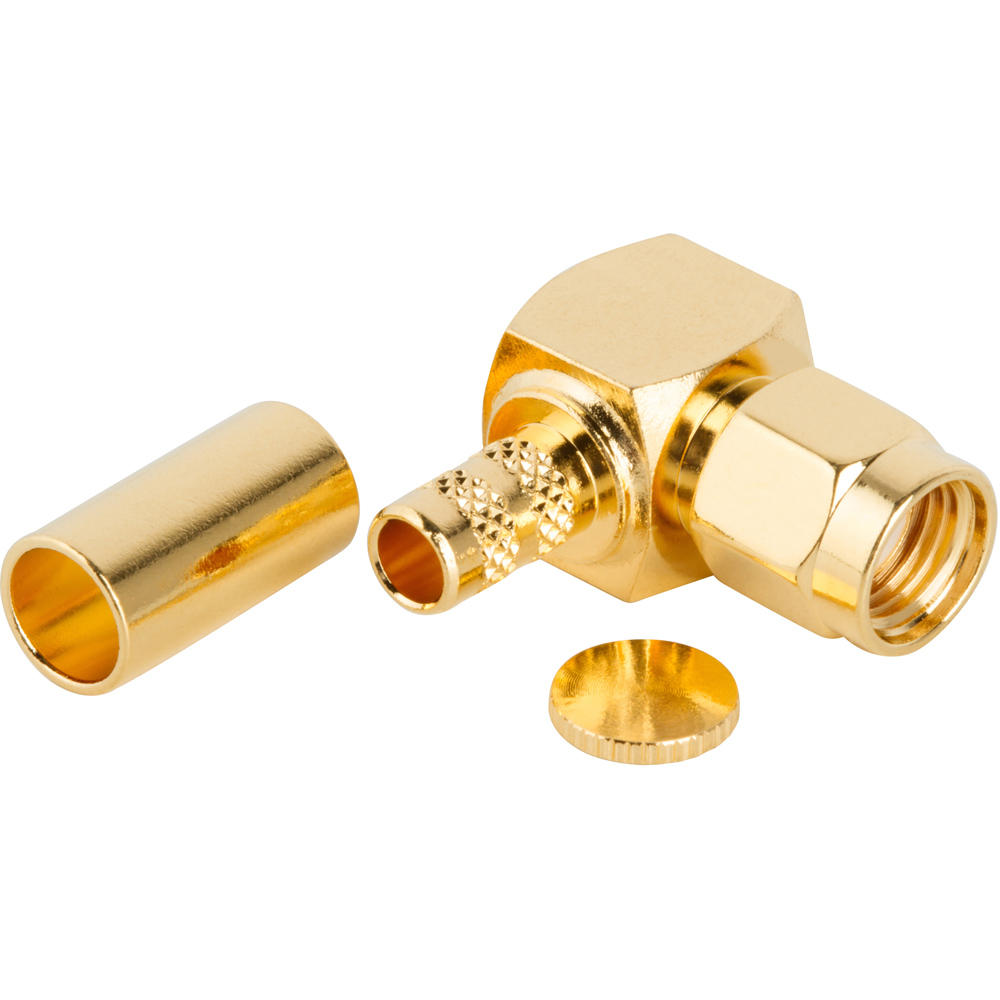

RF Connector RP-SMA Right Angle Crimp Plug Times LMR-200 Optimized 50 Ohm
| Weight | 0.00889 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | C2 |
| Cable Type | Belden 7807A, Times LMR-200, Times MSI-22 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 12.4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | 47-10070 |
