132253

$7.83

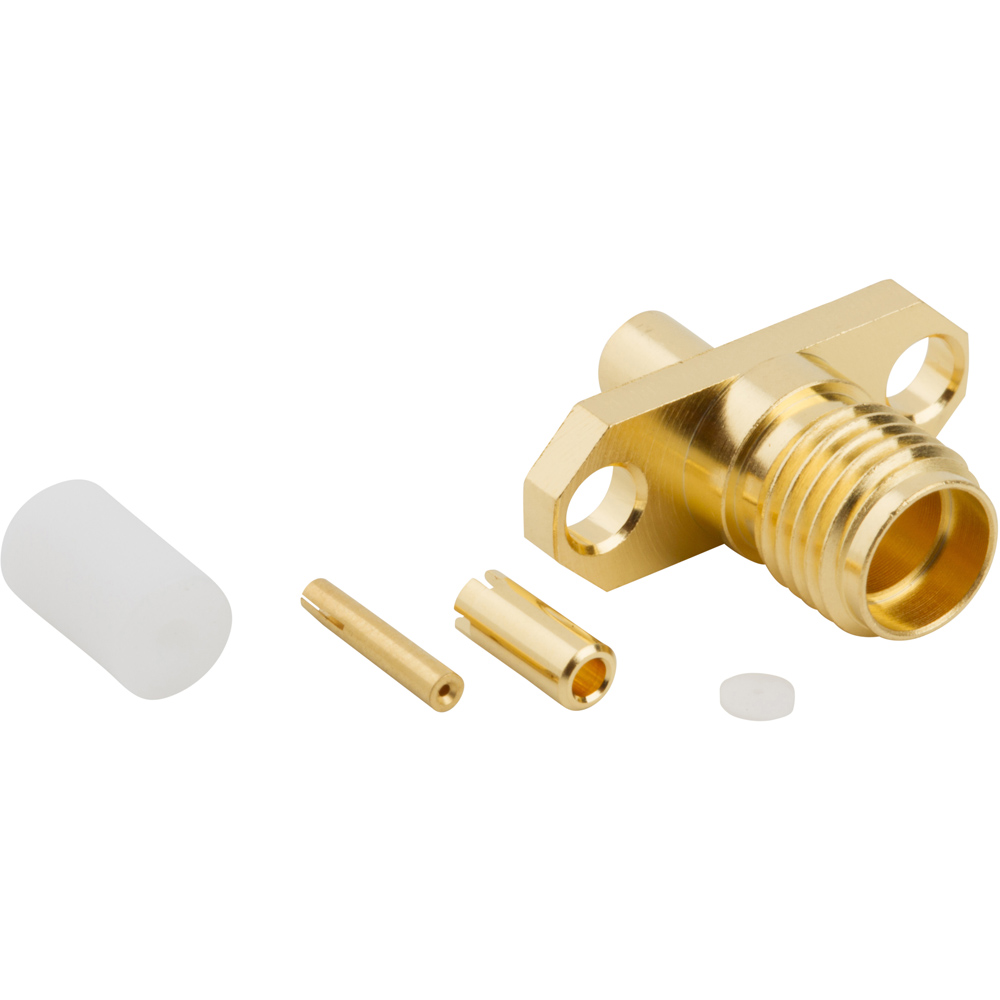

SMA Panel Mount Jack 2-Hole Flange Solder 50 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$7.83	$7.59	$7.36	$7.14	$6.94	$6.94	$6.14	$5.33

Summary
132253	$7.83
1x	$7.83

SKU: 132253 Category: SMA Connectors

RF Connector SMA Panel Mount Jack 2-Hole Flange Solder 50 Ohm

Weight	0.0023 kg
Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	SR0
Cable Type	0.047-inch Conformable, 0.047-inch Semi-Rigid, M17/151
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	2-Hole Flange
Isolated	No
Low PIM	No
Frequency (Max GHz)	18
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Solder
