Name: 132280RP
SKU: 132280RP
Price: 6.97 USD
Availability: InStock

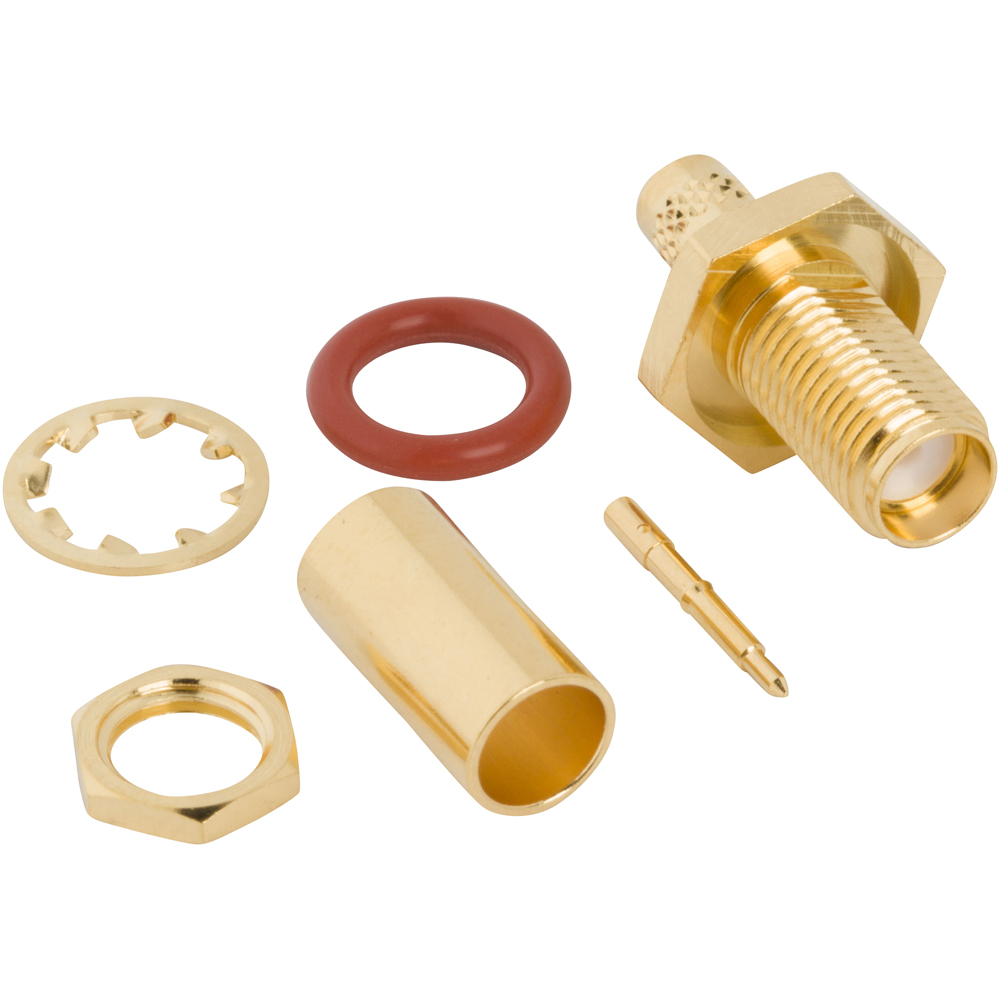

RF Connector RP-SMA Straight Crimp Jack RG-58 RG-141 Times LMR-195 Bulkhead 50 Ohm

Weight	0.0046 kg
Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	C
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Bulkhead – Rear Mount
Isolated	No
Low PIM	No
Frequency (Max GHz)	12.4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10070
