132298RP

$12.33

RP-SMA Straight Crimp Plug Times LMR-400 Optimized Belden 9913 50 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$12.33	$11.94	$11.57	$11.22	$10.91	$10.51	$10.16	$9.83

Summary
132298RP	$12.33
1x	$12.33

SKU: 132298RP Category: RP-SMA Connectors

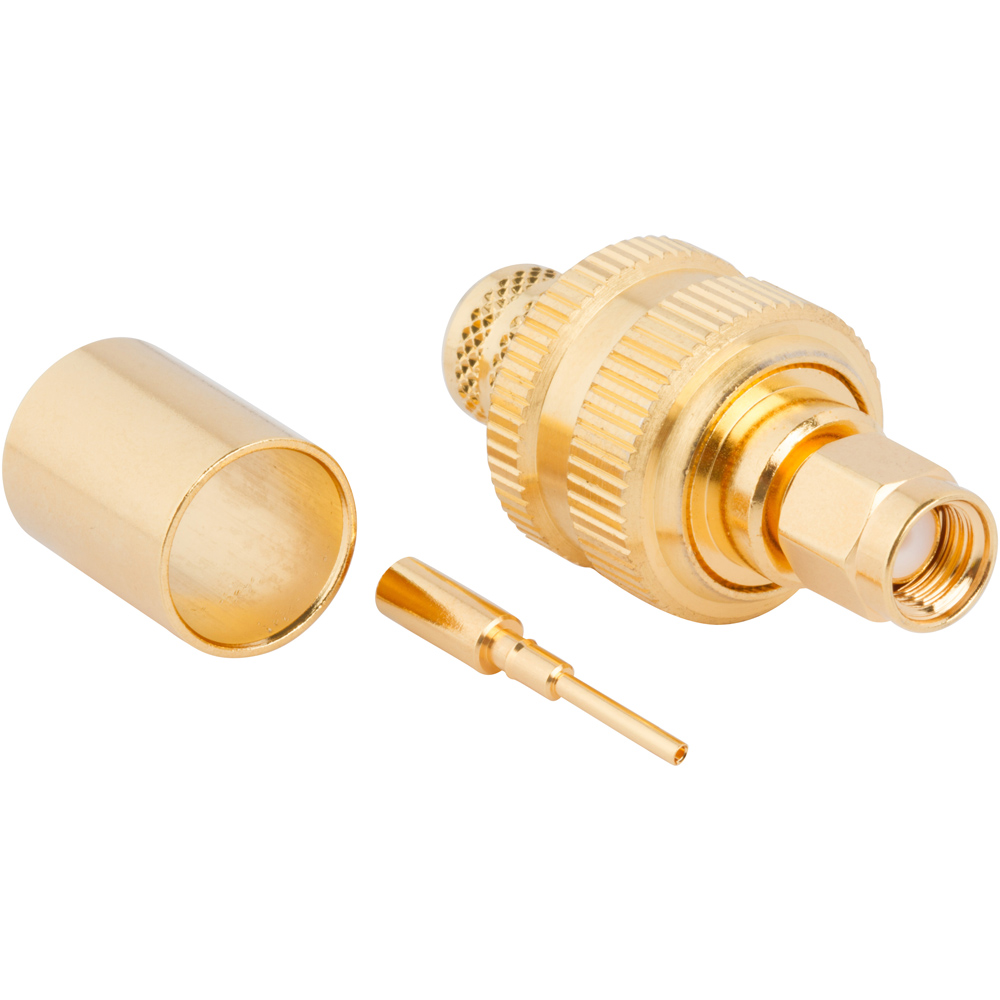

RF Connector RP-SMA Straight Crimp Plug Times LMR-400 Optimized Belden 9913 50 Ohm

Weight	0.0309 kg
Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	I
Cable Type	Belden 7810A, Belden 8214, Belden 9913, Times AA-5886, Times AA-6146, Times LMR-400, Times LMR-400 UltraFlex
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	12.4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10210
