132299RP

Name: 132299RP
SKU: 132299RP
Price: 999.00 USD
Availability: InStock

$999.00

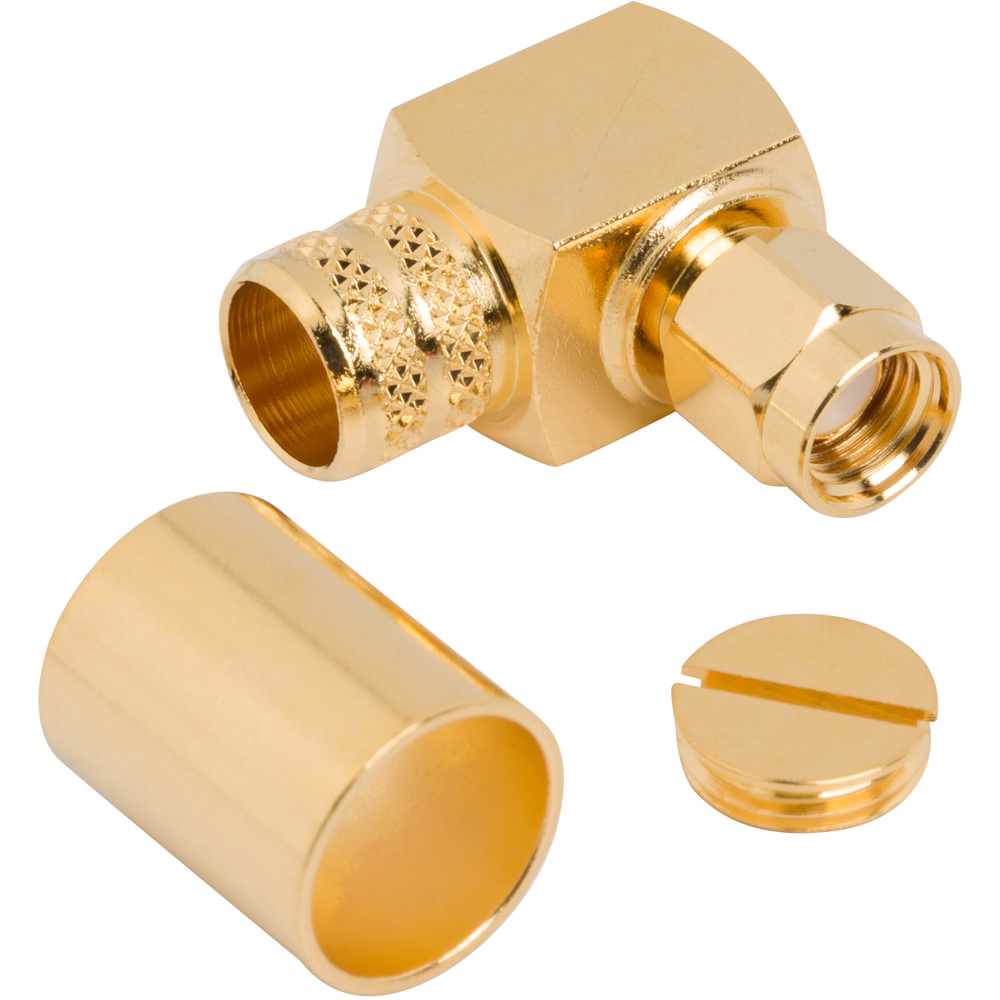

RP-SMA Right Angle Crimp Push-On Plug Times LMR-400 Optimized Belden 9913 50 Ohm

SKU: 132299RP Category: RP-SMA Connectors

RF Connector RP-SMA Right Angle Crimp Push-On Plug Times LMR-400 Optimized Belden 9913 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	LL06
Cable Type	Times LMR-400 Optimized, Times LMR-400 UltraFlex Optimized
Impedance (Ohms)	50
IP Rating	Not Rated
Gender	Push-On Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Beryllium Copper
Orientation	Right Angle
Contact Termination	Solder
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
