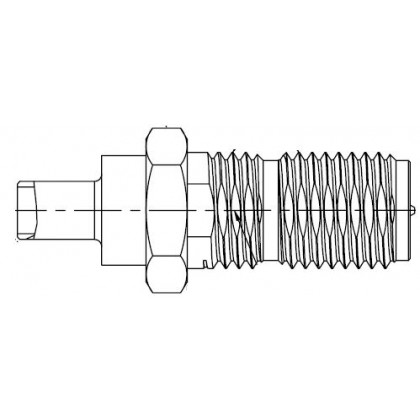

RF Connector RP-SMA Straight Crimp Jack 1.32 mm Micro-cable Bulkhead 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | P3 |
| Cable Type | 1.32 mm Micro-cable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 12.4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
