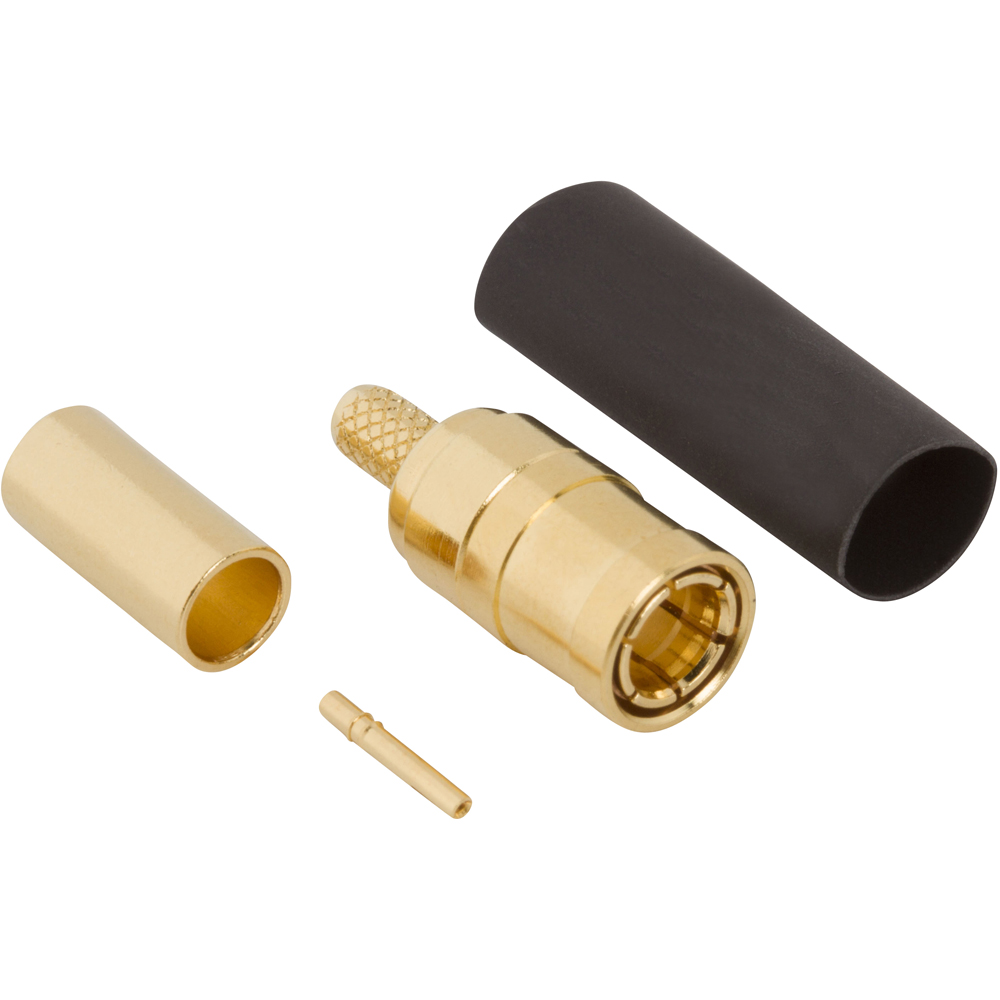

RF Connector Mini-SMB Straight Crimp Plug RG-179DS 75 Ohm
| Weight | 0.002453 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | S1 |
| Cable Type | AT&T 19224L2, RD-179, RG-179 DB, RG-179 Double Shield |
| Impedance (Ohms) | 75 |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Orientation | Straight |
| Contact Termination | Solder |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
