142194-75

$6.65

Mini-SMB Right Angle Crimp Plug RG-179 Belden 179DT 75 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$6.65	$6.45	$6.25	$6.06	$5.89	$5.89	$5.18	$4.55

Summary
142194-75	$6.65
1x	$6.65

SKU: 142194-75 Category: Mini-SMB Connectors

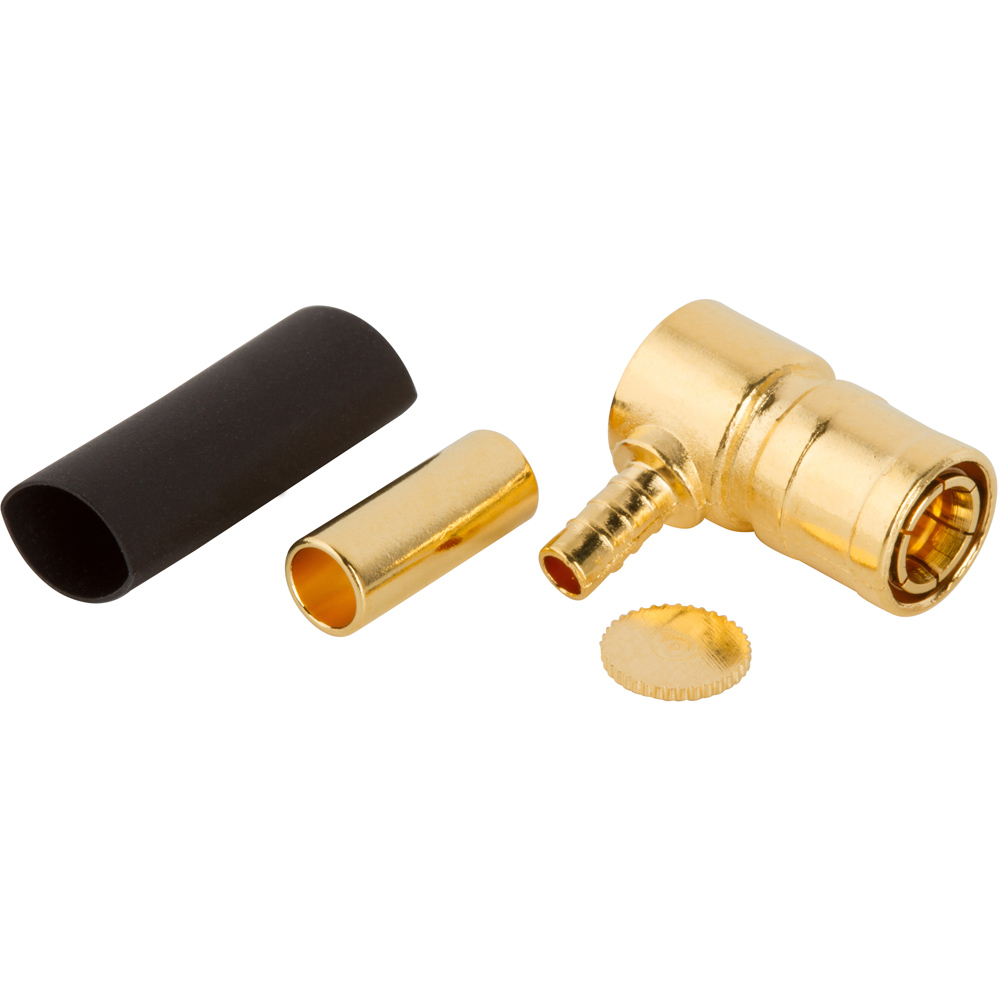

RF Connector Mini-SMB Right Angle Crimp Plug RG-179 Belden 179DT 75 Ohm

Weight	0.0023 kg
Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	S
Cable Type	Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Belden 9221, RG-161, RG-179, RG-187
Impedance (Ohms)	75
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Beryllium Copper
Orientation	Right Angle
Contact Termination	Solder
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
