142256

$2.29

PCB Termination Straight Through Hole RG-316 RG-179 50 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$2.29	$2.21	$2.15	$2.09	$2.04	$2.04	$1.76	$1.56

Summary
142256	$2.29
1x	$2.29

SKU: 142256 Category: PCB Terminations

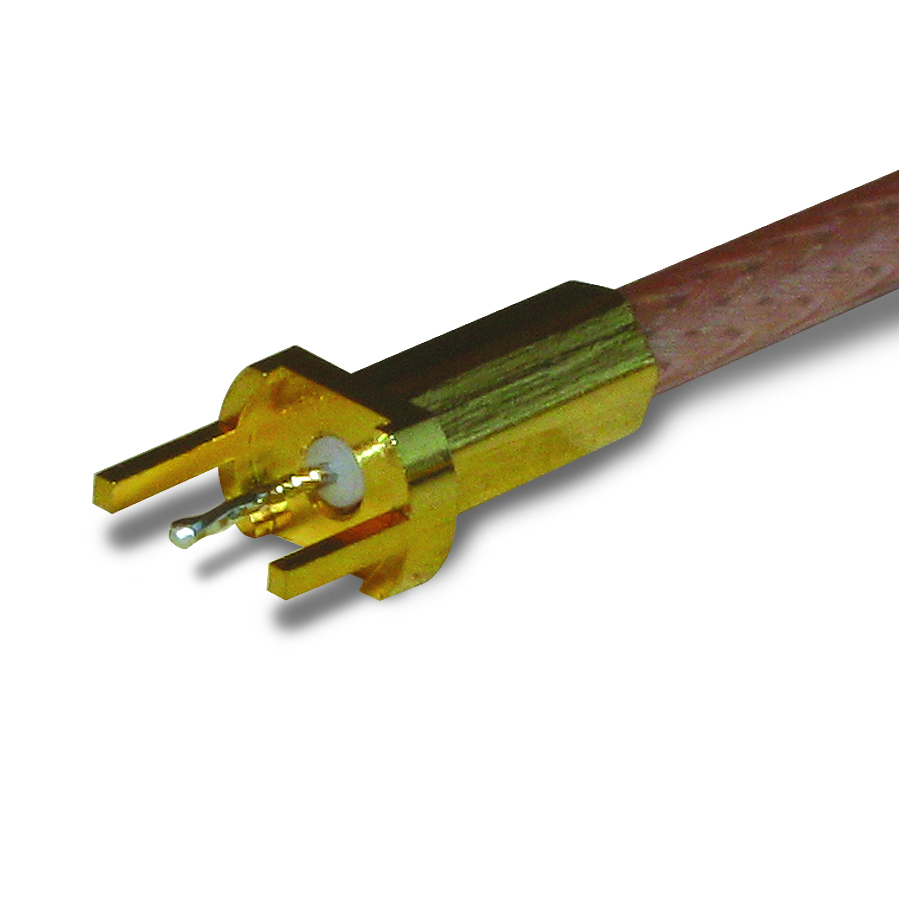

RF Connector PCB Termination Straight Through Hole RG-316 RG-179 50 Ohm

Weight	0.0004 kg
Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	B
Cable Type	Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Leoni DACAR 462, Leoni DACAR 462-2, RG-174, RG-188, RG-316, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Times LMR-100A, Times RG-174LL
Insulator Material	Not Applicable
IP Rating	Not Rated
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Temp (Max Degrees Celsius)	80
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Orientation	Straight
Termination Style	PCB – Through Hole
