142284

$20.17

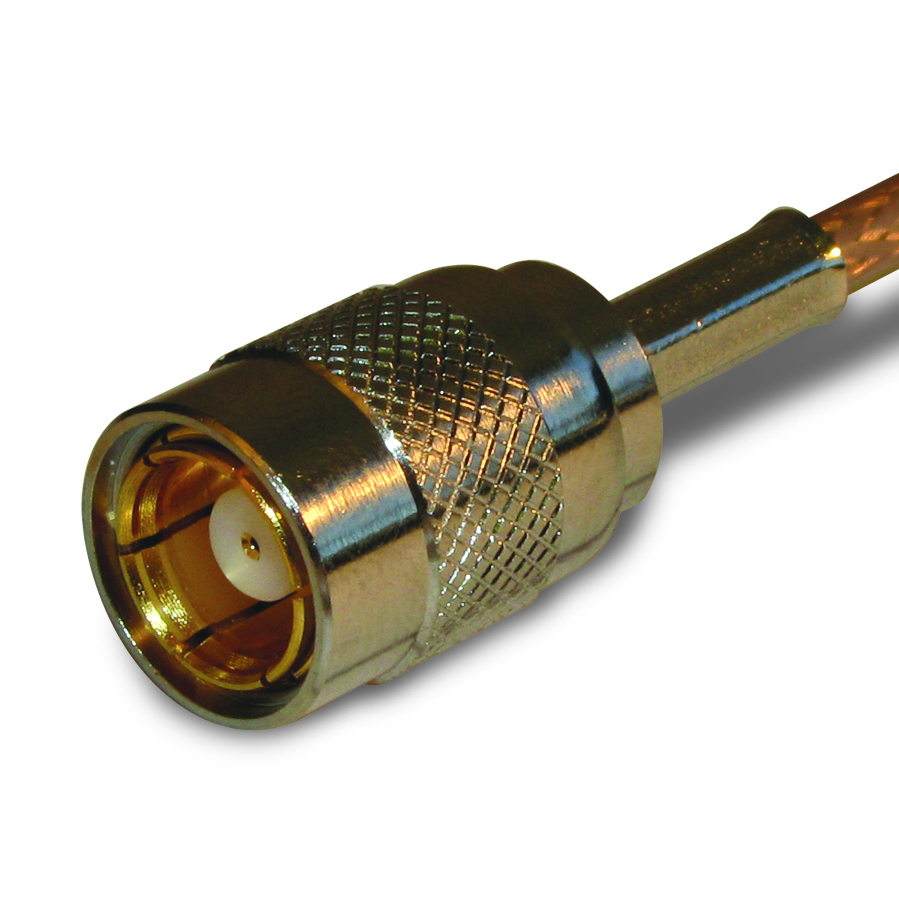

SMZ Straight Crimp Plug RG-179 Belden 179DT 75 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$20.17	$19.55	$18.94	$18.39	$17.87	$17.24	$16.40	$15.86

Summary
142284	$20.17
1x	$20.17

SKU: 142284 Category: SMZ Connectors

RF Connector SMZ Straight Crimp Plug RG-179 Belden 179DT 75 Ohm

Weight	0.00542 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	S
Cable Type	Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Belden 9221, RG-161, RG-179, RG-187
Impedance (Ohms)	75
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Push-on
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10150
