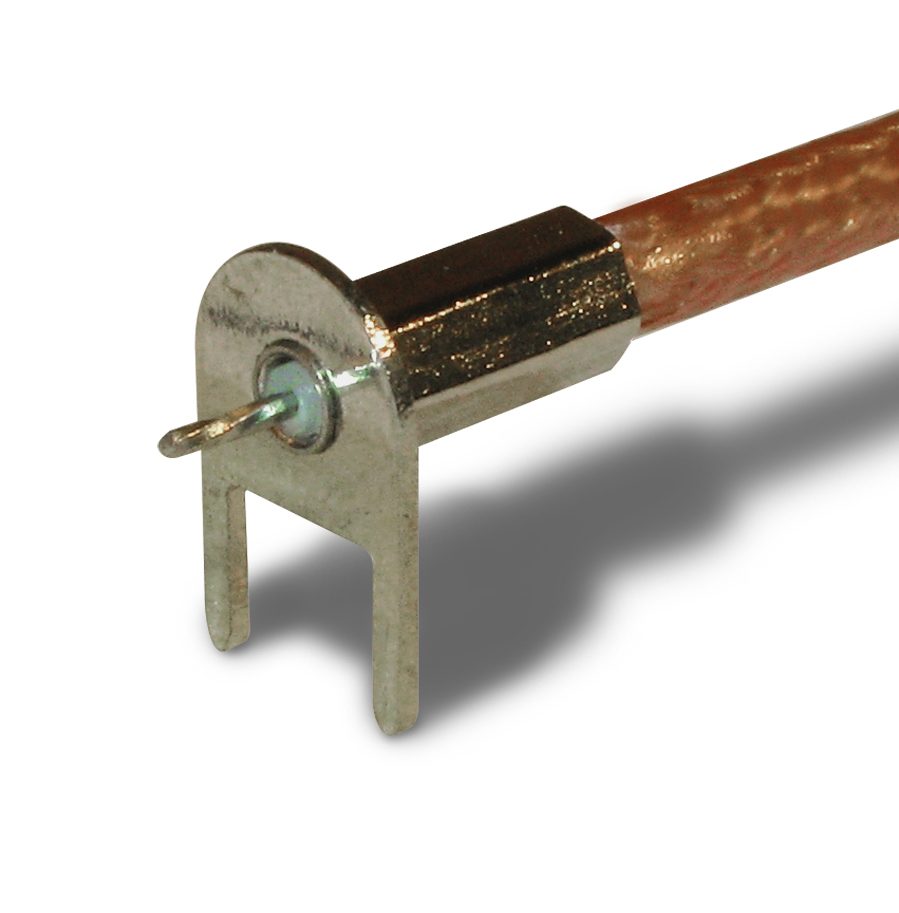

RF Connector PCB Termination Straight Through Hole RG-59 20AWG RG-59DS 50 Ohm
| Weight | 0.00042 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | G |
| Cable Type | Belden 8281, Belden 88281, Belden 9141, Belden 9231, Canare LV-775, RD-59, RG-59 20AWG, RG-59 Double Shield |
| Insulator Material | Not Applicable |
| IP Rating | Not Rated |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Temp (Max Degrees Celsius) | 80 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Orientation | Straight |
| Termination Style | PCB – Through Hole |
