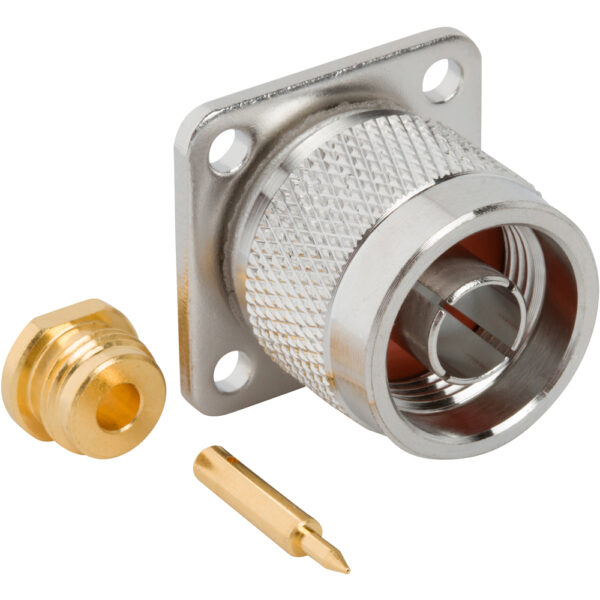

RF Connector N-Type Straight Solder Jack RG-402 0.141-inch Conformable Times Tflex 402 50 Ohm
N-Type Connectors
172309
$34.61
N-Type Straight Solder Jack RG-402 0.141-inch Conformable Times Tflex 402 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | SR2 |
| Cable Type | 0.141-inch Conformable, 0.141-inch Semi-Rigid, Belden 1673A, RG-402, Times Tflex 402 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | 4-Hole Flange |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 11 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
