172329

$19.78

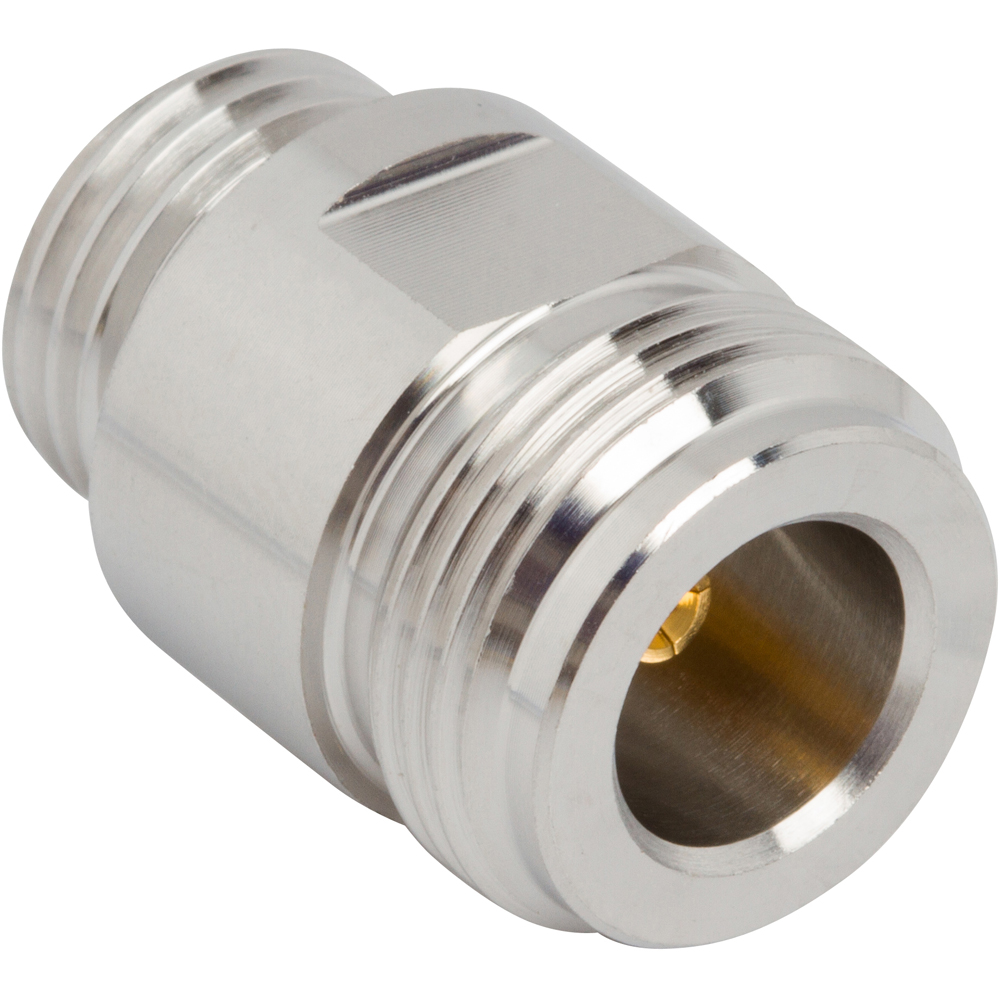

N-Type Threaded Screw In Jack 50 Ohm

Quantity 1 - 9 10 - 24 25 - 49 50 - 99 100 - 249 250 - 499 500 - 999 1000
Price $19.78 $19.16 $18.59 $18.04 $17.52 $17.52 $15.47 $13.44
Summary
172329$19.78
$19.78
SKU: 172329 Category:

RF Connector N-Type Threaded Scerw In Jack 50 Ohm

Weight 0.02116 kg
Manufacturer

Amphenol RF

Body Finish

White Bronze

Body Material

Brass

Cable Group

Not Applicable

Cable Type

Not Applicable

Impedance (Ohms)

50

Insulator Material

PTFE

IP Rating

Not Rated

Gender

Jack

Panel Mounting Feature

Not Applicable

Isolated

No

Low PIM

No

Frequency (Max GHz)

11

Temp (Max Degrees Celsius)

85

Temp (Min Degrees Celsius)

-40

Non Magnetic

No

Thread Direction

Standard

Contact Finish

Gold

Contact Material

Phosphor Bronze

Contact Termination

Crimp

Coupling Mechanism

Threaded

Mating Cycles (Min)

500

Termination Style

Round Post
