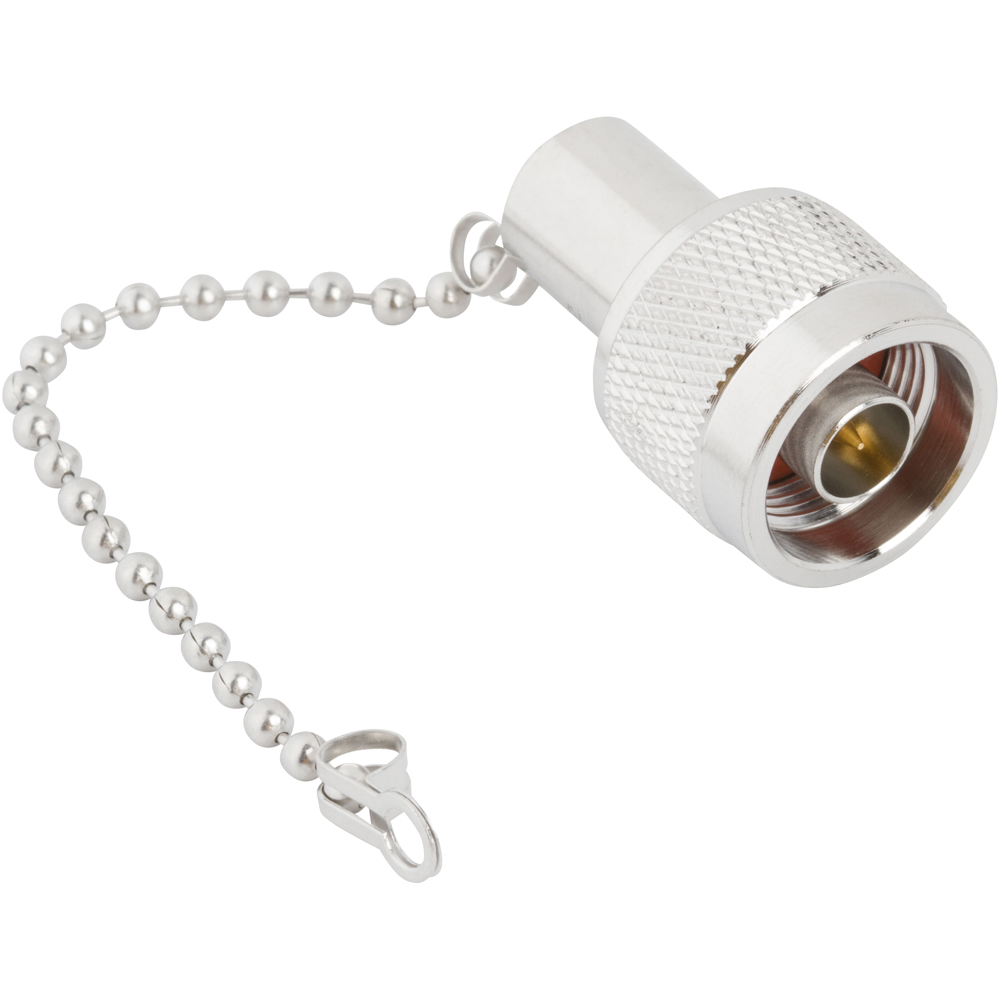

N-Type Terminator Plug, 1 Watt, 1%, With Chain
| Weight | 0.039658 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Alias | N1004B1-AT30GA-50R-0.01-1W |
| Body Finish | White Bronze |
| Body Material | Brass |
| Chain Option | With Chain |
| Contact Finish | Gold |
| Contact Material | Brass |
| ECCN | EAR99 |
| Gender | Plug |
| IP Rating | Not Rated |
| Insulator Material | PTFE |
| Impedance (Ohms) | 50 |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | Not Mil Qualified |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | Not Applicable |
| Temp (Max Degrees Celsius) | 165 |
| Thread Direction | Standard |
