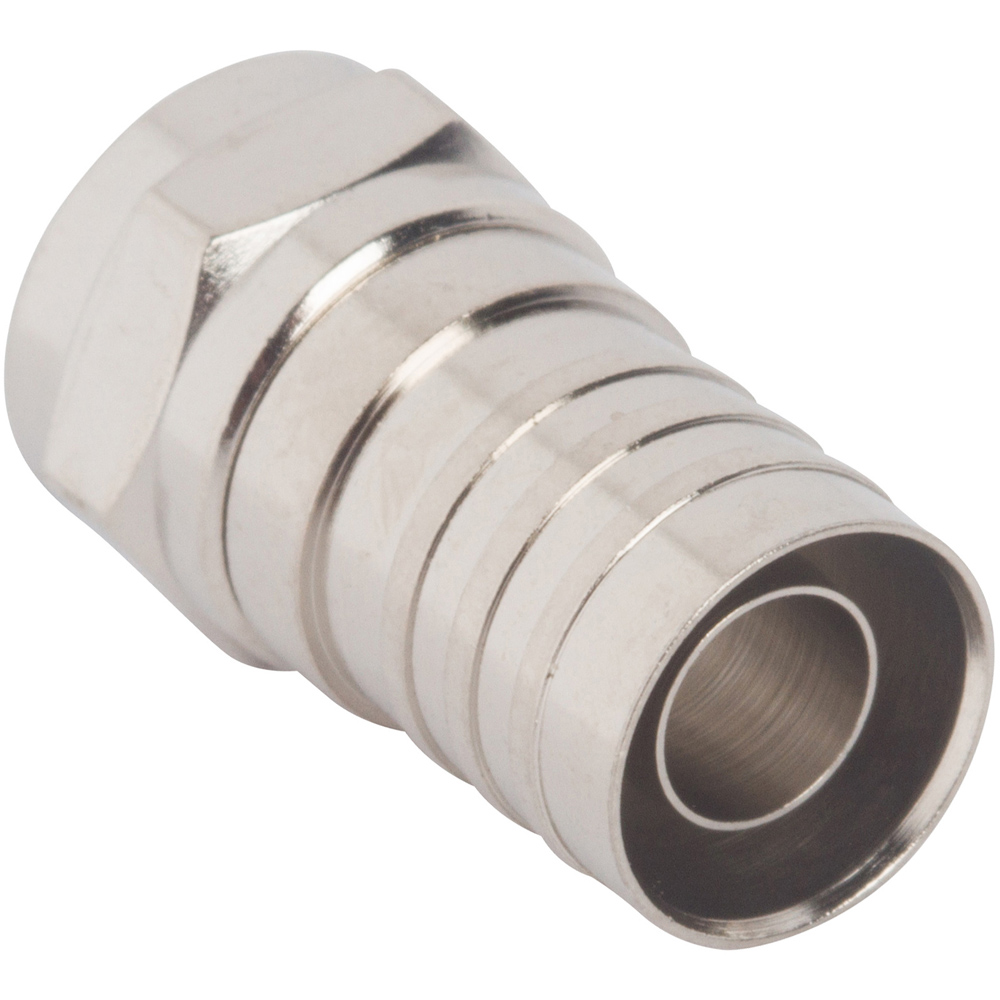

RF Connector F-Type Straight Crimp Plug RG-6 75 Ohm
| Weight | 0.00421 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | G2 |
| Cable Type | RG-6 |
| Impedance (Ohms) | 75 |
| Insulator Material | Not Applicable |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 2 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Not Applicable |
| Orientation | Straight |
| Contact Termination | Not Applicable |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | 47-10110 |
