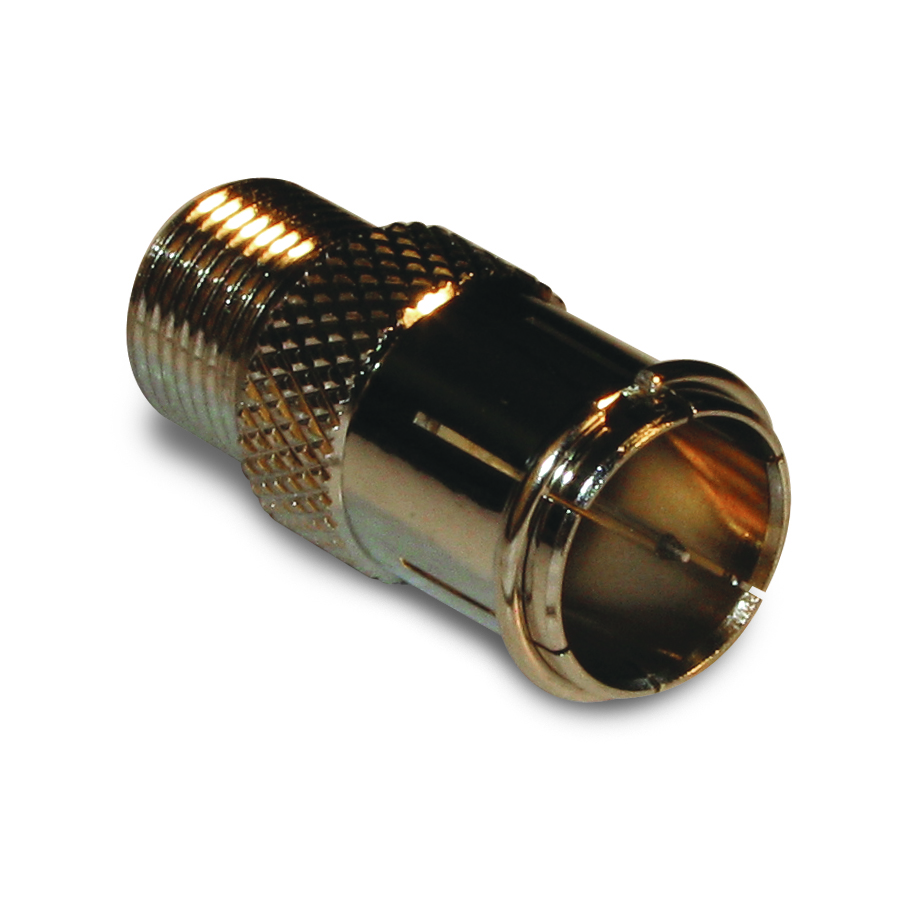

F-Type Jack to F-Type Push-on Plug Adapter 75 Ohm Straight
| Weight | 0.00822 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 75 |
| Insulator Material | Polypropylene |
| IP Rating | Not Rated |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 2 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -55 |
| Non Magnetic | No |
| Adapter Side 1 Series | F-Type |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | F-Type |
| Adapter Side 2 Style | Push-on Plug |
| Contact Finish | Gold |
| Orientation | Straight |
