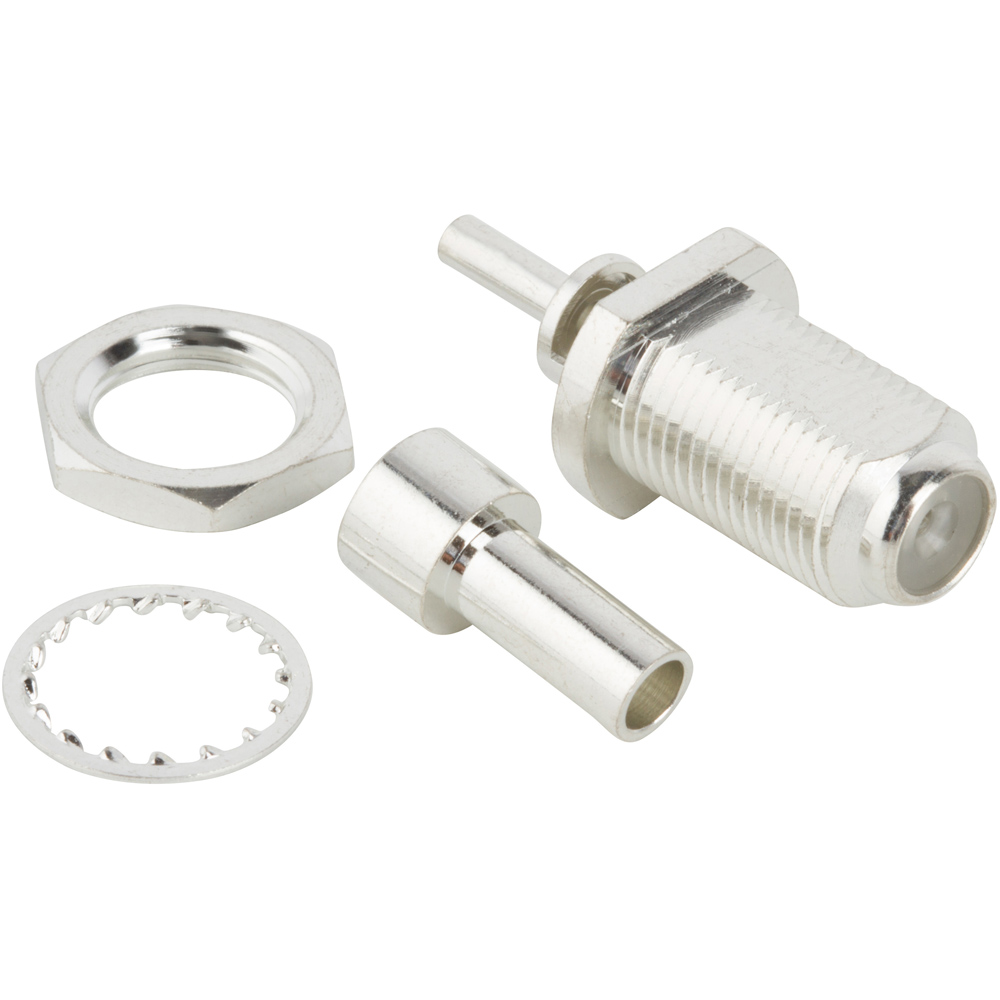

RF Connector F-Type Straight Crimp Jack RG-179DS RD-179 Bulkhead Rear Mount 75 Ohm
F-Type Connectors
222167-10
$2.99
F-Type Straight Crimp Jack RG-179DS RD-179 Bulkhead Rear Mount 75 Ohm
| Weight | 0.0077 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Bright Tin |
| Body Material | Brass |
| Cable Group | S1 |
| Cable Type | AT&T 19224L2, RD-179, RG-179 DB, RG-179 Double Shield |
| Impedance (Ohms) | 75 |
| Insulator Material | Polypropylene |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Contact Finish | Bright Tin |
| Contact Material | Brass |
| Orientation | Straight |
| Contact Termination | Solder |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
