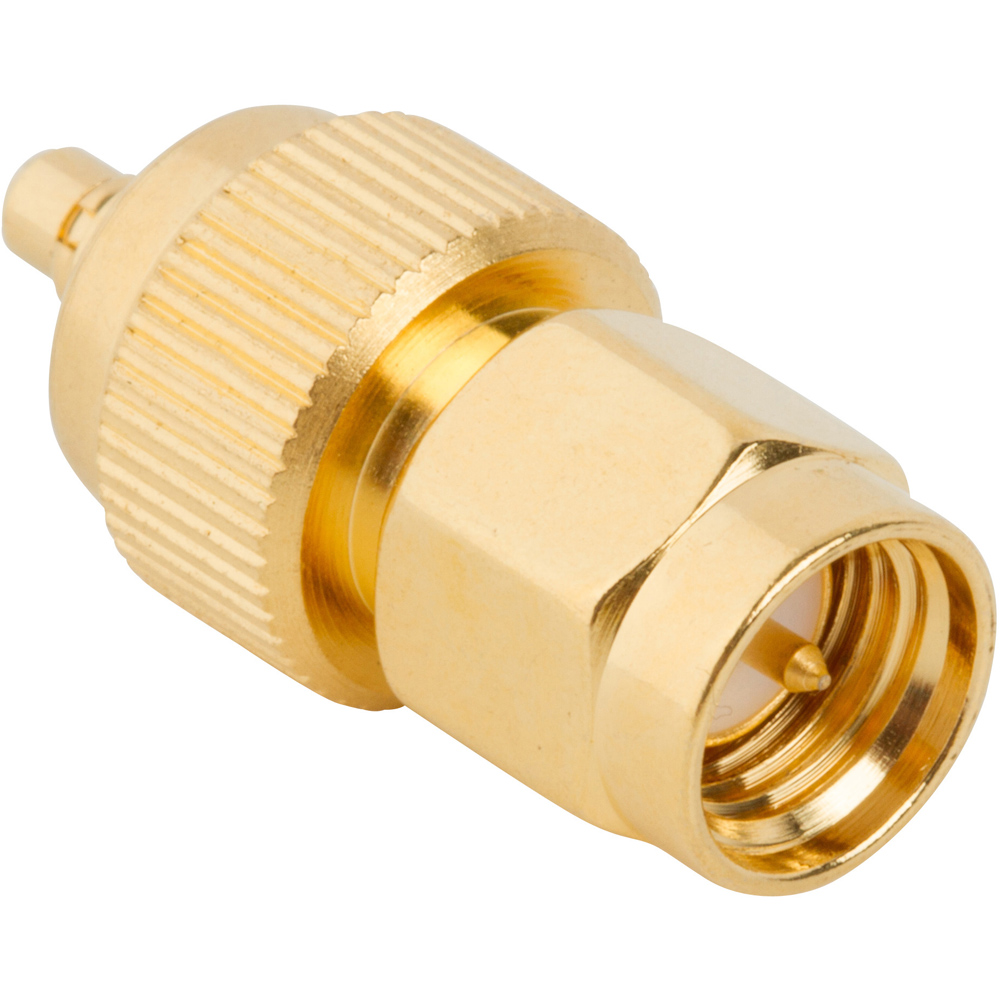

MMCX Plug to SMA Plug Adapter 50 Ohm Straight
MMCX to SMA Adapters, SMA to MMCX Adapters
242142
$26.96
MMCX Plug to SMA Plug Adapter 50 Ohm Straight
| Weight | 0.0064 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | MMCX |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | SMA |
| Adapter Side 2 Style | Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
