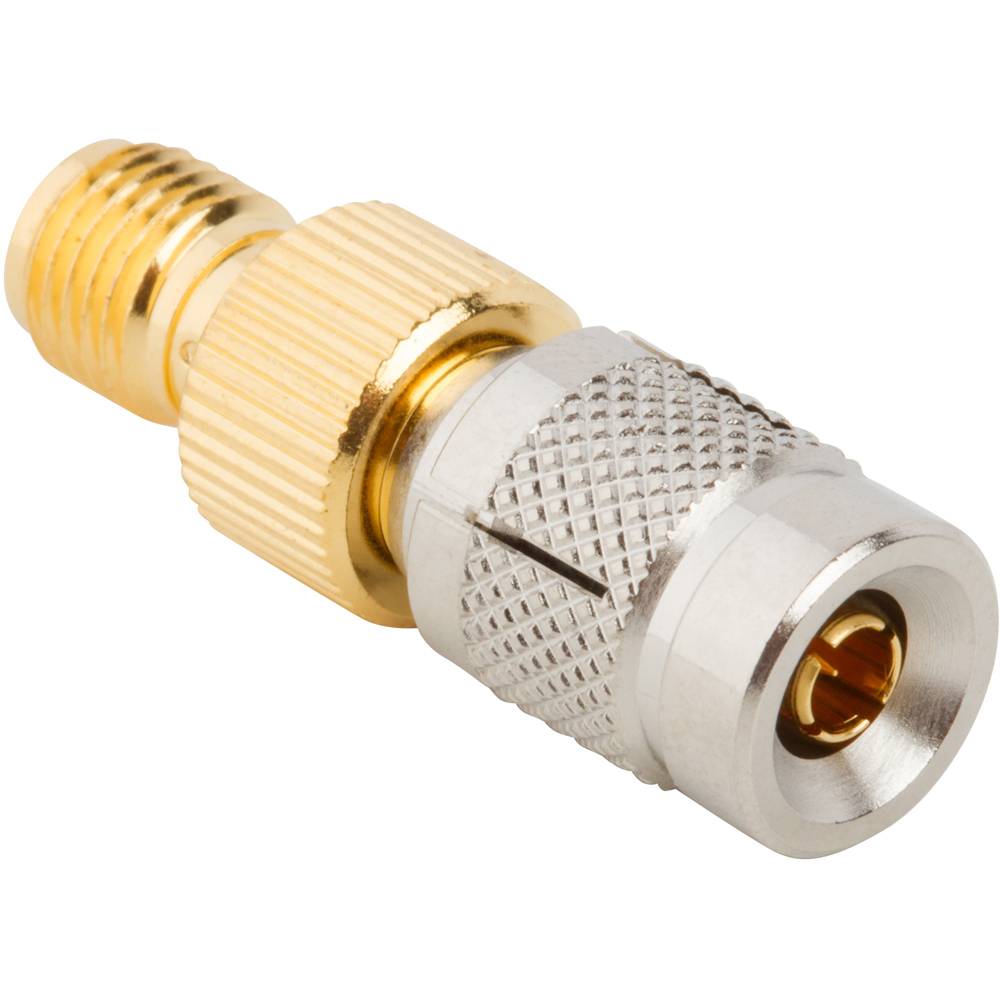

1.0/2.3 Plug to SMA Jack Adapter 50 Ohm Straight
1.0-2.3 to SMA Adapters, SMA to 1.0-2.3 Adapters
242179
$35.62
1.0-2.3 Plug to SMA Jack Adapter 50 Ohm Straight
| Weight | 0.007944 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 10 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | 1.0-2.3 |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | SMA |
| Adapter Side 2 Style | Jack |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
