7-16 to SMA Adapters, SMA to 7-16 Adapters

242266

$67.39

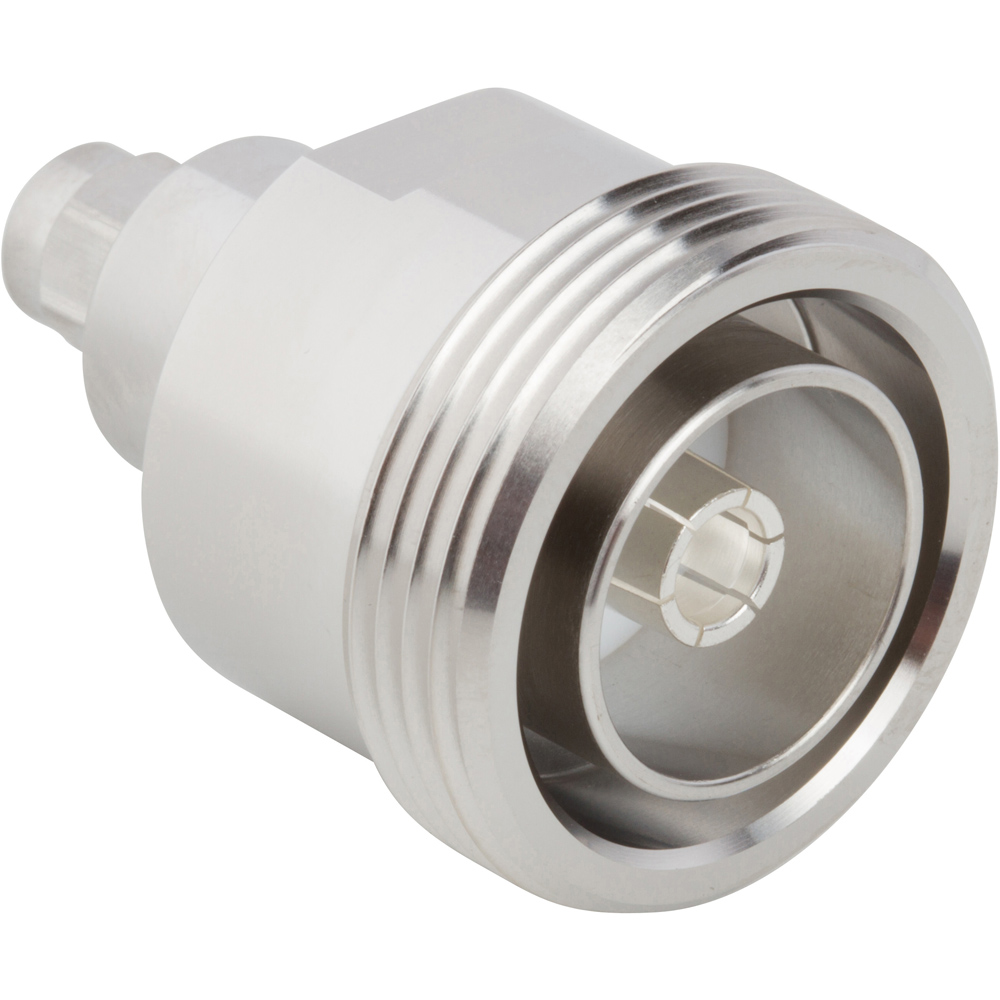

7-16 Jack to SMA Plug Adapter 50 Ohm Straight

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000 - 2499	2500
Price	$67.39	$61.12	$56.94	$52.52	$49.90	$49.90	$47.41	$45.03	$45.03

Summary
242266	$67.39
	$67.39

SKU: 242266 Categories: 7-16 to SMA Adapters, SMA to 7-16 Adapters

7/16 Jack to SMA Plug Adapter 50 Ohm Straight

Manufacturer	Amphenol RF
Body Finish	White Bronze
Body Material	Brass
Impedance (Ohms)	50
Insulator Material	PTFE
Panel Mounting Feature	Not Applicable
Operating Level	Performance
Isolated	No
Low PIM	Yes
Frequency (Max GHz)	6
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Adapter Side 1 Series	16-Jul
Adapter Side 1 Style	Jack
Adapter Side 2 Series	SMA
Adapter Side 2 Style	Plug
Contact Finish	Silver
Contact Material	Beryllium Copper
