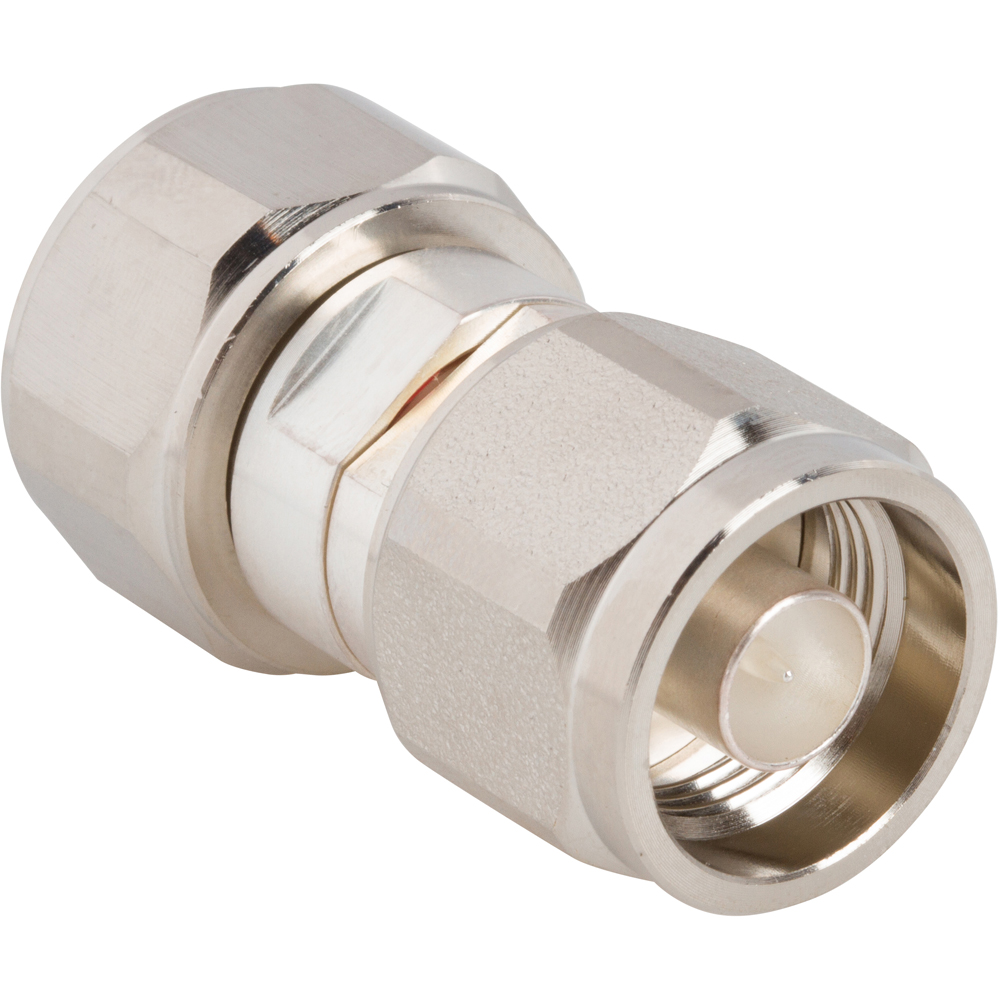

N-Type Plug to 4.1/9.5 Plug Adapter 50 Ohm Straight
4.1-9.5 to N-Type Adapters, N-Type to 4.1-9.5 Adapters
242283
$62.04
N-Type Plug to 4.1-9.5 Plug Adapter 50 Ohm Straight
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | Yes |
| Frequency (Max GHz) | 2.5 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | 4.1-9.5 |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | N-Type |
| Adapter Side 2 Style | Plug |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
