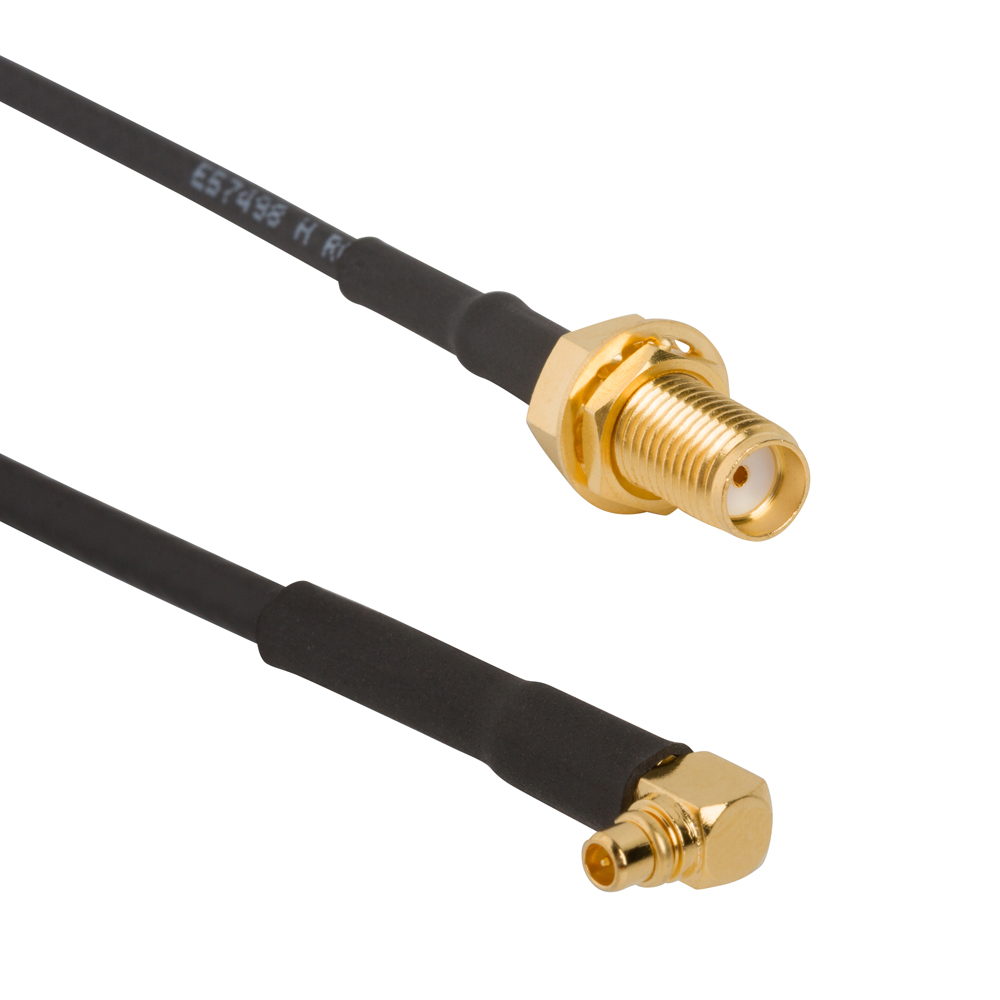

RF Cable Assembly MMCX Right Angle Plug to SMA Straight Bulkhead Jack RG-174 50 Ohm 1 M (39.37 Inches)
MMCX to SMA Cable Assemblies, SMA to MMCX Cable Assemblies
245106-02-M1.00
$22.37
MMCX Right Angle Plug to SMA Straight Bulkhead Jack RG-174 50 Ohm 1 M (39.37 Inches)
| Weight | 0.01919 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Cable Group | B |
| Impedance (Ohms) | 50 |
| IP Rating | Not Rated |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | MMCX |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | 262103 |
| Connector 2 Series | SMA |
| Connector 2 Style | Str Blkhd Jack |
| Connector 2 Part Number | 132119 |
| Cable Type | RG-174 |
| Cable Assembly Length | 39.37 in (1000 mm) |
