Name: 252103
SKU: 252103
Price: 3.87 USD
Availability: InStock

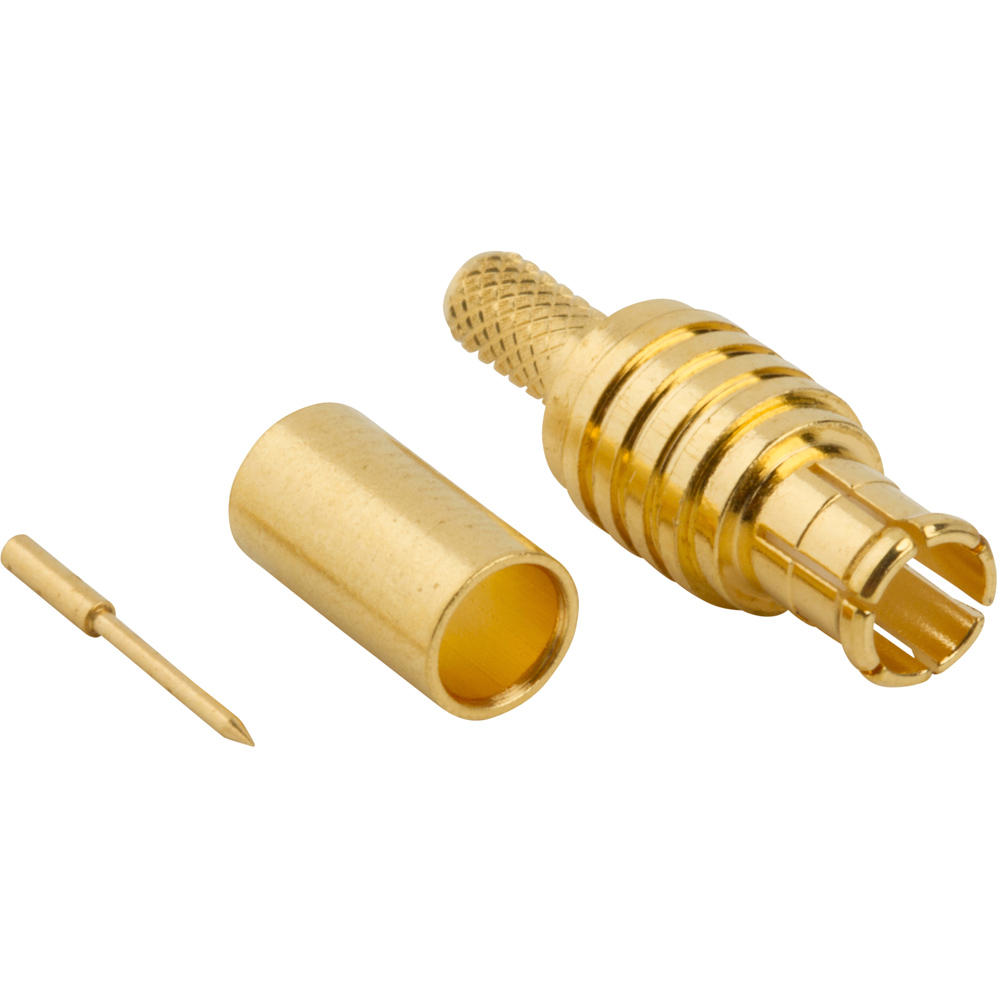

RF Connector MCX Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm

Weight	0.0011 kg
Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	B
Cable Type	Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Leoni DACAR 462, Leoni DACAR 462-2, RG-174, RG-188, RG-316, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Times LMR-100A, Times RG-174LL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	6
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Coupling Mechanism	Push-on
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10150

Reviews

There are no reviews yet.

Be the first to review “252103”

Quantity	100 - 249	250 - 499	500 - 999	1000 - 2499	2500
Price	$3.87	$3.50	$3.27	$2.77	$2.71
