252103-75

$5.09

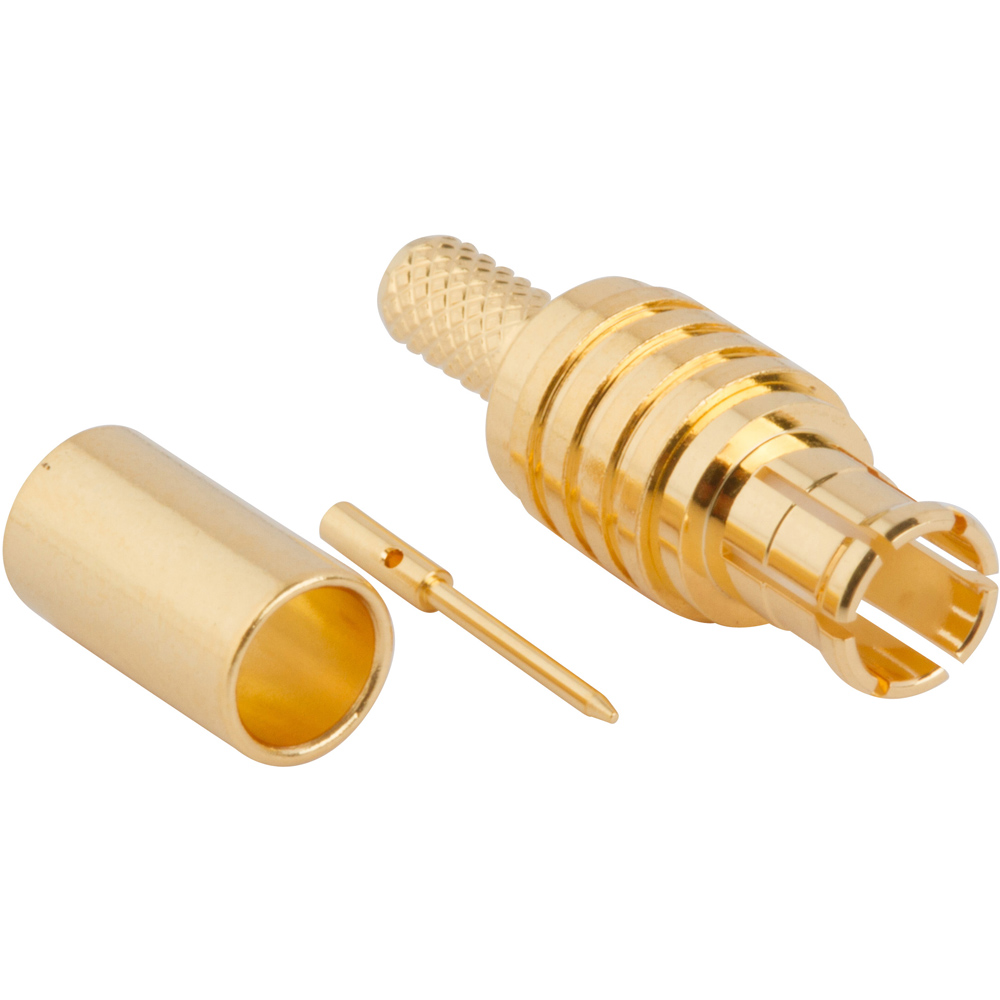

MCX Straight Crimp Plug RG-179 Belden 179DT 75 Ohm

Quantity	100 - 499	500 - 999	1000
Price	$5.09	$4.50	$4.01

Summary
252103-75	$5.09
1x	$5.09

SKU: 252103-75 Category: MCX Connectors

RF Connector MCX Straight Crimp Plug RG-179 Belden 179DT 75 Ohm

Weight	0.00096 kg
Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	S
Cable Type	Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Belden 9221, RG-161, RG-179, RG-187
Impedance (Ohms)	75
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	6
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Coupling Mechanism	Push-on
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10150
