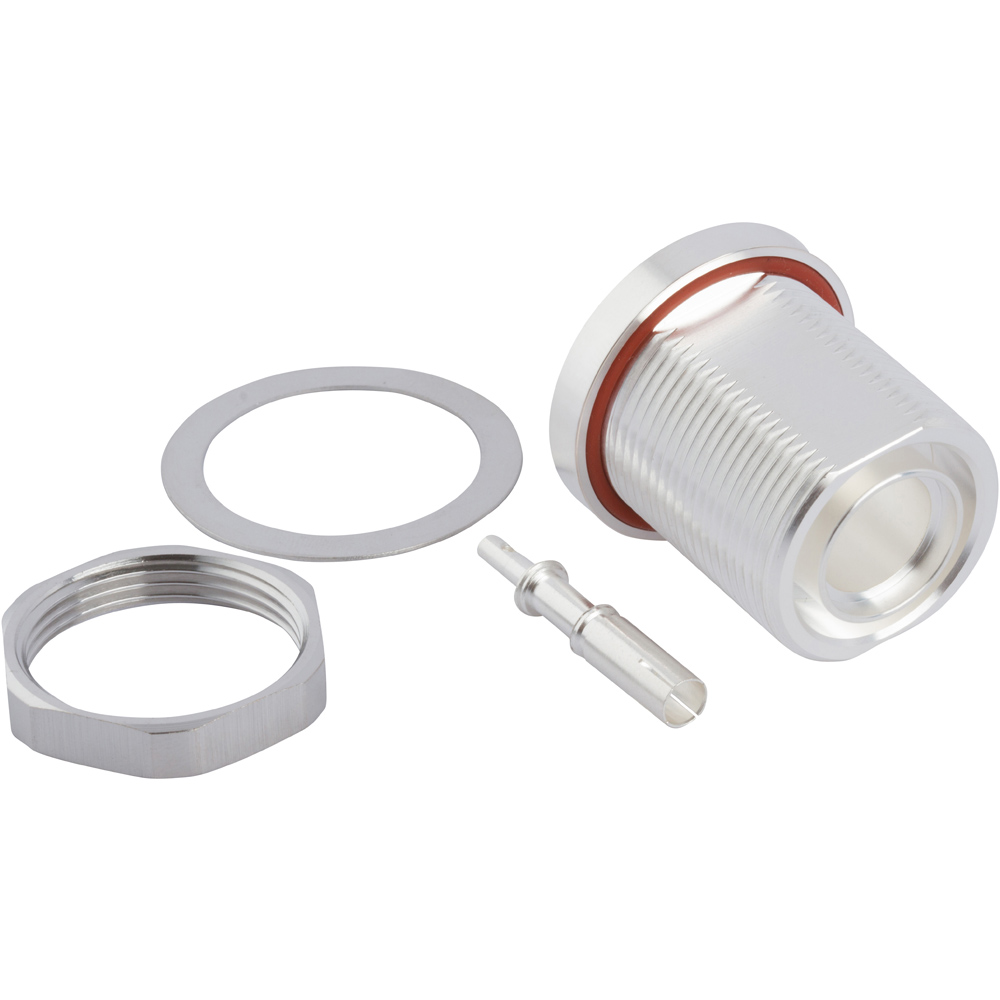

RF Connector 7-16 Straight Solder Jack RG-401 0.250-inch Conformable Times Tflex 401 Bulkhead 50 Ohm
7-16 Connectors
272159-10
$48.47
7-16 Straight Solder Jack RG-401 0.250-inch Conformable Times Tflex 401 Bulkhead 50 Ohm
| Weight | 0.165 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | SR3 |
| Cable Type | 0.250-inch Conformable, 0.250-inch Semi-Rigid, RG-401, Times Tflex 401 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Isolated | No |
| Low PIM | Yes |
| Frequency (Max GHz) | 7.5 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Contact Termination | Press-Fit |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
